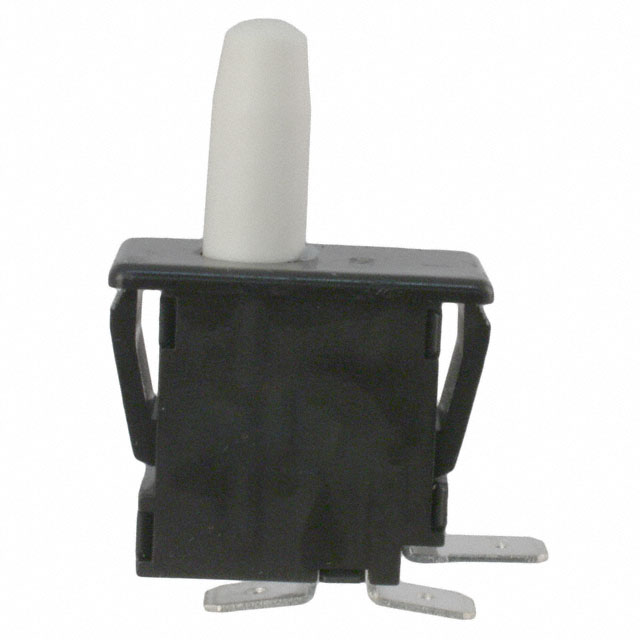

PP1-EB7-1A2
ActiveE-Switch
SWITCH SNAP ACTION SPDT 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsPP1 Series Spec
PP1-EB7-1A2
ActiveE-Switch
SWITCH SNAP ACTION SPDT 16A 125V
Deep-Dive with AI
DocumentsPP1 Series Spec
Technical Specifications
Parameters and characteristics for this part
| Specification | PP1-EB7-1A2 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 16 A |
| Electrical Life | 6000 Cycles |
| Features | White Actuator |
| Mounting Type | Panel Mount, Snap-In |
| Operating Force | 300 gf |
| Operating Position | 18.7 mm |
| Operating Position [custom] | 0.738 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.28 | |
| 10 | $ 3.14 | |||
| 25 | $ 2.87 | |||
| 100 | $ 2.48 | |||
| 250 | $ 2.40 | |||
Description
General part information
PP1-EB7 Series
Switch SPDT Panel Mount, Snap-In
