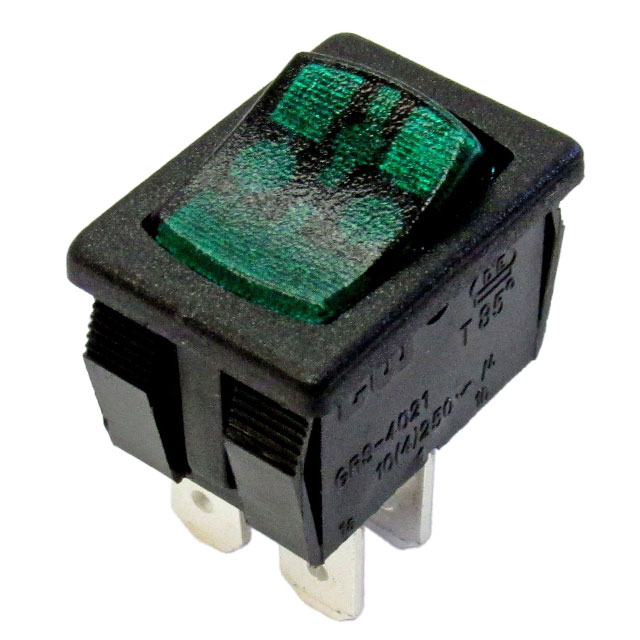

Specification	GRL-4021-0011

Actuator Marking	No Marking
Actuator Type	Concave (Curved), Illuminated
Circuit	DPST
Color	Green
Color - Actuator/Cap	Green
Current Rating	16 A
Electrical Life (Cycles)	25000
Illumination Type	Neon
Illumination Voltage (Nominal)	125 VAC
Mechanical Life (Cycles)	25000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Length	19.2 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	12.9 mm
Quick Connect Size (0.187")	0.187 in
Switch Function	On-Off
Termination Style	Quick Connect
Voltage Rating - AC	125 V

GRL-4021 Series

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Illumination Type	Color	Illumination Voltage (Nominal)	Color - Actuator/Cap	Quick Connect Size (0.187")	Termination Style	Circuit	Current Rating	Actuator Marking	Switch Function	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Type	Voltage Rating - AC	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Mounting Type	Features
CW Industries GRL-4021-0011	25000	25000 Cycles	Neon	Green	125 VAC	Green	0.187 in	Quick Connect	DPST	16 A	No Marking	On-Off	-20 °C	105 °C	Concave (Curved) Illuminated	125 V	19.2 mm	Rectangular	12.9 mm	Panel Mount Snap-In
CW Industries GRL-4021-0001	25000	25000 Cycles	Neon	Red	125 VAC	Red	0.187 in	Quick Connect	DPST	8 A	No Marking	On-Off	-20 °C	105 °C	Concave (Curved) Illuminated	125 V	19.2 mm	Rectangular	12.9 mm	Panel Mount Snap-In	Terminal Barriers
CW Industries GRL-4021-0012	25000	25000 Cycles	Neon	Red	125 VAC	Red	0.187 in	Quick Connect	DPST	16 A	No Marking	On-Off	-20 °C	105 °C	Concave (Curved) Illuminated	250 V	19.2 mm	Rectangular	12.9 mm	Panel Mount Snap-In	Terminal Barriers
CW Industries GRL-4021-0007	25000	25000 Cycles	Neon	Red	125 VAC	Red	0.187 in	Quick Connect	DPST	16 A	No Marking	On-Off	-20 °C	105 °C	Concave (Curved) Illuminated	125 V	19.2 mm	Rectangular	12.9 mm	Panel Mount Snap-In	Terminal Barriers
CW Industries GRL-4021-0000	25000	25000 Cycles	Neon	Red	125 VAC	Red	0.187 in	Quick Connect	DPST	13 A	No Marking	On-Off	-20 °C	105 °C	Concave (Curved) Illuminated	125 V	19.2 mm	Rectangular	12.9 mm	Panel Mount Snap-In	Terminal Barriers
