PGSB-30

Obsolete

Essentra Access Solutions

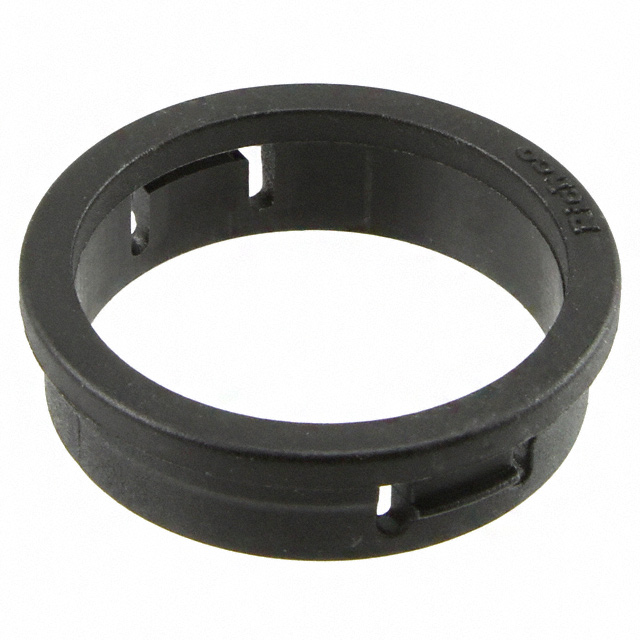

BUSHING 0.750" NYLON BLACK

Deep-Dive with AI

Search across all available documentation for this part.

PGSB-30

Obsolete

Essentra Access Solutions

BUSHING 0.750" NYLON BLACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PGSB-30

Bushing, Grommet Type	Bushing
Color	Black
Diameter - Inside [diameter]	19.05 mm
Diameter - Inside [diameter]	0.75 in
Features	Snap-Mount
For Use With/Related Products	Wires, Cable
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Panel Cutout Dimensions	0.875 in
Panel Cutout Dimensions	22.22 mm
Panel Thickness [custom]	0.062 in
Panel Thickness [custom]	1.57 mm

PGSB Series

Part	Material Flammability Rating	Material	Features	Bushing, Grommet Type	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Color	For Use With/Related Products	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Diameter - Inside	Panel Thickness [custom]	Panel Thickness [custom]	Panel Cutout Dimensions	Panel Cutout Dimensions	Panel Cutout Dimensions
Essentra Access Solutions PGSB-2530	UL94 V-2	Polyamide (PA66) Nylon 6/6	Snap-Mount	Bushing	24.99 mm	0.984 in	Black	Cable Wires	30 mm	1.181 "	3.1 mm	0.99 mm	0.122 "	0.039 in
Essentra Access Solutions PGSB-1316	UL94 V-2	Polyamide (PA66) Nylon 6/6	Snap-Mount	Bushing	12.8 mm	0.504 "	Black	Cable Wires	16 mm	0.63 in
Essentra Access Solutions PGSB-17	UL94 V-2	Polyamide (PA66) Nylon 6/6	Snap-Mount	Bushing		0.25 in	Black	Cable Wires	15.88 mm	0.625 in	3.18 mm	0.79 mm	0.125 "	0.031 "	6.35 mm
Essentra Access Solutions PGSB-9A	UL94 V-2	Polyamide (PA66) Nylon 6/6	Snap-Mount	Bushing Split		0.803 in	Black	Cable Wires	24.99 mm	0.984 in	3 mm	0.79 mm	0.118 in	0.031 "	20.4 mm
Essentra Access Solutions PGSB-30	UL94 V-2	Polyamide (PA66) Nylon 6/6	Snap-Mount	Bushing	19.05 mm	0.75 in	Black	Cable Wires								0.062 in	1.57 mm	0.875 in	22.22 mm
Essentra Access Solutions PGSB-37	UL94 V-2	Polyamide (PA66) Nylon 6/6	Snap-Mount	Bushing	26.97 mm	1.062 in	Black	Cable Wires	38.1 mm	1.5 in	3.18 mm	0.79 mm	0.125 "	0.031 "						Circular
Essentra Access Solutions PGSB-20	UL94 V-2	Polyamide (PA66) Nylon 6/6	Snap-Mount	Bushing	12.7 mm	0.5 in	Black	Cable Wires	17.45 mm	0.687 in	3.18 mm	0.79 mm	0.125 "	0.031 "
Essentra Access Solutions PGSB-31	UL94 V-2	Polyamide (PA66) Nylon 6/6	Snap-Mount	Bushing	19.46 mm	0.766 in	Black	Cable Wires	25.4 mm	1 in	3.18 mm	0.79 mm	0.125 "	0.031 "
Essentra Access Solutions PGSB-32	UL94 V-2	Polyamide (PA66) Nylon 6/6	Snap-Mount	Bushing	20.62 mm	0.812 in	Black	Cable Wires		1.097 in	3.18 mm	0.79 mm	0.125 "	0.031 "					27.86 mm
Essentra Access Solutions PGSB-15	UL94 V-2	Polyamide (PA66) Nylon 6/6	Snap-Mount	Bushing	9.93 mm	0.391 in	Black	Cable Wires	14.27 mm	0.562 in	3.18 mm	0.79 mm	0.125 "	0.031 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.23
		10	$ 0.19
		25	$ 0.17
		50	$ 0.16
		200	$ 0.15
		400	$ 0.13
		600	$ 0.13
		1000	$ 0.10

Description

General part information

PGSB Series

Circular - 0.875" (22.22mm) Bushing 0.750" (19.05mm) Black

Documents

Technical documentation and resources

No documents available
