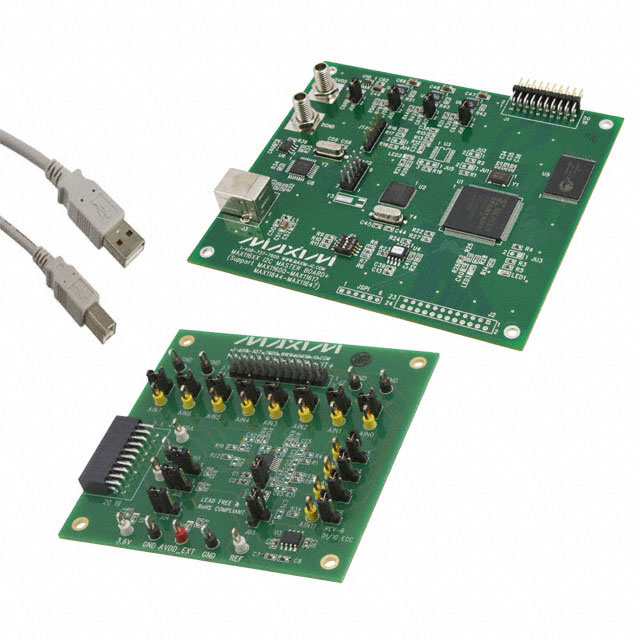

MAX11617EVSYS+

Active

Analog Devices Inc./Maxim Integrated

EVALUATION SYSTEM FOR MAX11617

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVALUATION SYSTEM FOR MAX11617

Technical Specifications

Parameters and characteristics commom to parts in this series

EVALUATION SYSTEM FOR MAX11617

Part	Sampling Rate (Per Second)	Number of Bits	Number of A/D Converters	Data Interface	Utilized IC / Part	Supplied Contents	Supplier Device Package	Package / Case	Package / Case	Package / Case	Ratio - S/H:ADC	Number of Inputs	Mounting Type	Reference Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Input Type	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Architecture
Analog Devices Inc./Maxim Integrated MAX11617EVSYS+	94.4 k per second	8, 10, 12	1	I2C, Serial	MAX11617	Board(s)
Analog Devices Inc./Maxim Integrated MAX11617EEE+T	94.4 k per second	12 bits	1	I2C			16-QSOP	0.154 in	16-SSOP	3.9 mm	1:1	6, 12	Surface Mount	External, Internal	2.7 V	3.6 V	Differential, Single Ended	3.6 V	2.7 V	85 °C	-40 °C	MUX-S/H-ADC	SAR
Analog Devices Inc./Maxim Integrated MAX11617EEE+	94.4 k per second	12 bits	1	I2C			16-QSOP	0.154 in	16-SSOP	3.9 mm	1:1	6, 12	Surface Mount	External, Internal	2.7 V	3.6 V	Differential, Single Ended	3.6 V	2.7 V	85 °C	-40 °C	MUX-S/H-ADC	SAR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 217.65

General part information

MAX11617 - 8, 10, 12 Bit 94.4k Samples per Second Analog to Digital Converter (ADC) Evaluation Board
