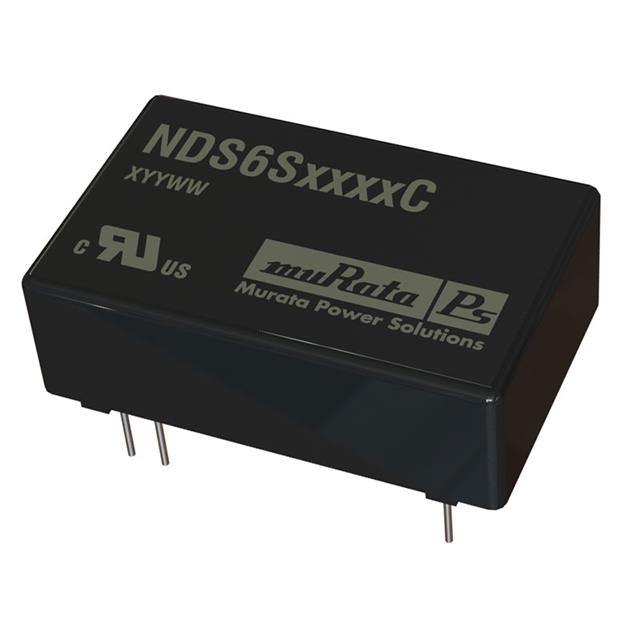

NDS6D2412C

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 2:1, 6 W, 2 OUTPUT, 12 V, 250 MA

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 2:1, 6 W, 2 OUTPUT, 12 V, 250 MA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 250mA, 250mA 18V - 36V Input

Technical documentation and resources

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Power (Watts)	Voltage - Output 1	Efficiency	Voltage - Input (Min) [Min]	Package / Case	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 2	Number of Outputs	Applications	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max)	Current - Output (Max)	Package / Case
Murata Power Solutions Inc. NDS6D2415C	Isolated Module	85 °C	-40 °C	Through Hole	6 W	15 V	87.5 %	18 V	24-DIP Module, 8 Leads	1.5 kV	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	-15 V	2	ITE (Commercial)	36 V
Murata Power Solutions Inc. NDS6D2405C	Isolated Module	85 °C	-40 °C	Through Hole	6 W		83 %	18 V	24-DIP Module, 8 Leads	1.5 kV	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	-5 V	2	ITE (Commercial)	36 V	600 mA	12 V	5 V
Murata Power Solutions Inc. NDS6D2412C	Isolated Module	85 °C	-40 °C	Through Hole	6 W	12 V	87 %	18 V	24-DIP Module, 8 Leads	1.5 kV	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	-12 V	2	ITE (Commercial)	36 V				250 mA	250 mA
Murata Power Solutions Inc. NDS6D2415EC	Isolated Module	85 °C	-40 °C	Through Hole	6 W	15 V	87.5 %	18 V	24-DIP Module	1.5 kV	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	-15 V	2	ITE (Commercial)	36 V						9 PC Pad
Murata Power Solutions Inc. NDS6D2405EC	Isolated Module	85 °C	-40 °C	Through Hole	6 W		83 %	18 V	24-DIP Module	1.5 kV	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	-5 V	2	ITE (Commercial)	36 V	600 mA	12 V	5 V			9 PC Pad
