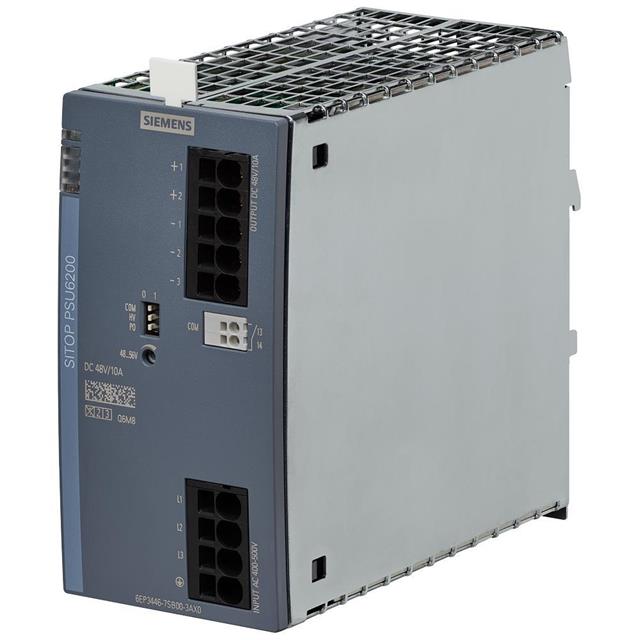

6EP34467SB003AX0 - 6EP34467SB003AX0

6EP34467SB003AX0

Active
Siemens

SITOP PSU6200/3AC/DC48V/10A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Supplies BrochureDatasheet+2
6EP34467SB003AX0 - 6EP34467SB003AX0

6EP34467SB003AX0

Active
Siemens

SITOP PSU6200/3AC/DC48V/10A

Deep-Dive with AI

DocumentsPower Supplies BrochureDatasheet+2

Technical Specifications

Parameters and characteristics for this part

Specification6EP34467SB003AX0
AC Voltage - Input [Max]576 VAC
AC Voltage - Input [Min]323 VAC
ApplicationsIndustrial, ITE (Commercial)
Approval AgencyCE, CSA, cCSAus, EAC, cULus
Current - Output (Max) [Max]10 A
DC Voltage - Input (Max) [Max]600 V
DC Voltage - Input (Min) [Min]450 V
Efficiency96.2 %
FeaturesAdjustable Output
Input TypeAC or DC
Number of Outputs1
Operating Temperature [Max]70 °C
Operating Temperature [Min]-30 ░C
Power (Watts)480 W
Size / Dimension [x]5.31 "
Size / Dimension [x]135 mm
Size / Dimension [y]70 mm
Size / Dimension [y]2.76 in
Size / Dimension [z]135 mm
Size / Dimension [z]5.31 "
Standard Number62368-1, 60950-1, UL 508
Voltage - Output 148 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 441.17

Description

General part information

6EP34467 Series

SITOP PSU6200/3AC/DC48V/10A
