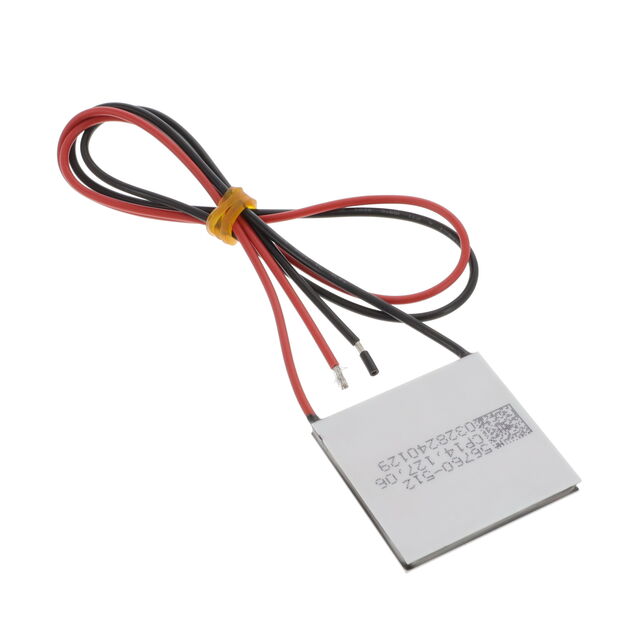

Specification	56760-512

Current - Max	6 A
Delta Tmax	67 °C
Features	Lead Wires, Sealed, Epoxy
Height	3.81 mm
Maximum Power Dissipation (Qmax)	51.4 W
Operating Temperature	80 °C
Resistance	2.25 Ohms
Size / Dimension Length	39.9 mm
Size / Dimension Shape	Square
Size / Dimension Width	39.9 mm
Voltage - Max	14.5 V

56760 Series

Part	Height	Voltage - Max	Delta Tmax	Features	Operating Temperature	Maximum Power Dissipation (Qmax)	Current - Max	Resistance	Size / Dimension Shape	Size / Dimension Width	Size / Dimension Length	Number of Stages
Laird Thermal Systems, Inc. 56760-512	3.81 mm	14.5 V	67 °C	Epoxy Lead Wires Sealed	80 °C	51.4 W	6 A	2.25 Ohms	Square	39.9 mm	39.9 mm
Laird Thermal Systems, Inc. 56760-500	3.81 mm	14.5 V	67 °C	Lead Wires Sealed Silicone RTV	80 °C	51.4 W	6 A	2.25 Ohms	Square	39.88 mm	39.88 mm	1
Laird Thermal Systems, Inc. 56760-505	3.81 mm	14.5 V	67 °C	Lead Wires Non-Sealed	80 °C	51.4 W	6 A	2.25 Ohms	Square	39.88 mm	39.88 mm	1
