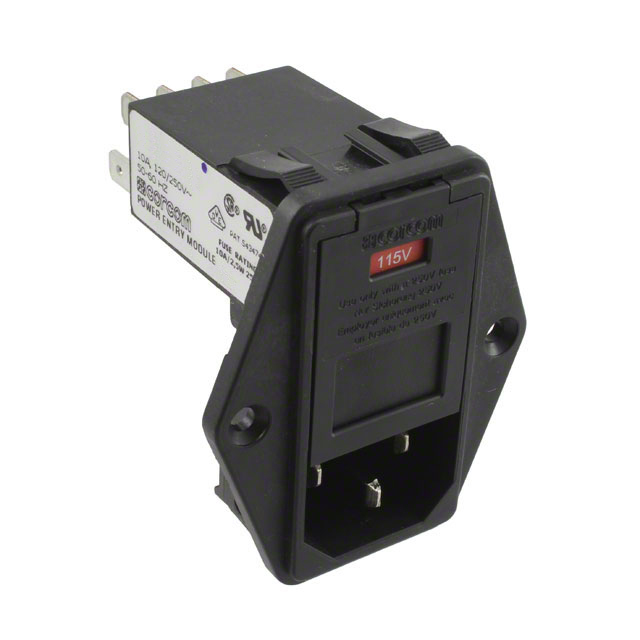

8-6609959-6

Active

TE Connectivity Raychem Cable Protection

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

8-6609959-6

Active

TE Connectivity Raychem Cable Protection

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet Corcom EMI/RFI Filter Selector Chart

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8-6609959-6

Accomodates a Fuse	True
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Voltage Selector
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	26.92 mm
Panel Cutout Dimensions [y]	54.1 mm
Switch Features	Switch On-Off
Termination	0.187 "
Termination	4.7 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC

6609959 Series

Part	Approval Agency	Switch Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - Appliance Inlet	Features	Termination	Termination	Termination	Filter Type	Connector Type	Current Rating - Filter	Current Rating - Appliance Inlet	Mounting Type	Fuse Holder, Drawer	Connector Style
TE Connectivity Raychem Cable Protection 6-6609959-3	CSA UL VDE	Switch On-Off	28.45 mm	54.1 mm	120 VAC	Interconnection Block Shielded	0.187 "	4.7 mm	Quick Connect	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	10 A	10 A	Flange Panel Mount	Fuse Holder Twin Fused	IEC 320-C14
TE Connectivity Raychem Cable Protection 8-6609959-6	CSA UL VDE	Switch On-Off	26.92 mm	54.1 mm	120 VAC	Voltage Selector	0.187 "	4.7 mm	Quick Connect	Unfiltered - Commercial	Receptacle Male Blades - Module		10 A	Flange Panel Mount	Fuse Holder Twin Fused	IEC 320-C14
TE Connectivity Raychem Cable Protection 4-6609959-5	CSA UL VDE	Switch On-Off	28.45 mm	54.1 mm	120 VAC	Conversion Clip Shielded Voltage Selector	0.187 "	4.7 mm	Quick Connect	Unfiltered - Commercial	Receptacle Male Blades - Module		10 A	Flange Panel Mount	Fuse Holder	IEC 320-C14
TE Connectivity Raychem Cable Protection 6-6609959-6	CSA UL VDE	Switch On-Off	26.92 mm	54.1 mm	120 VAC	Interconnection Block	0.187 "	4.7 mm	Quick Connect	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	10 A	10 A	Flange Panel Mount	Fuse Holder Twin Fused	IEC 320-C14
TE Connectivity Raychem Cable Protection 5-6609959-6	CSA UL VDE	Switch On-Off	28.45 mm	54.1 mm	120 VAC	Conversion Clip Interconnection Block Shielded Voltage Selector	0.187 "	4.7 mm	Quick Connect	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	10 A	10 A	Flange Panel Mount	Fuse Holder	IEC 320-C14
TE Connectivity Raychem Cable Protection 4-6609959-4	CSA UL VDE	Switch On-Off	28.45 mm	54.1 mm	120 VAC	Conversion Clip Shielded Voltage Selector	0.187 "	4.7 mm	Quick Connect	Unfiltered - Commercial	Receptacle Male Blades - Module		10 A	Flange Panel Mount	Fuse Holder	IEC 320-C14
TE Connectivity Raychem Cable Protection 4-6609959-1	CSA UL VDE	Switch On-Off	28.45 mm	54.1 mm	120 VAC	Conversion Clip Interconnection Block Shielded Voltage Selector	0.187 "	4.7 mm	Quick Connect	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	10 A	10 A	Flange Panel Mount	Fuse Holder	IEC 320-C14
TE Connectivity Raychem Cable Protection 5-6609959-8	CSA UL VDE	Switch On-Off	26.92 mm	54.1 mm	120 VAC	Conversion Clip Interconnection Block Voltage Selector	0.187 "	4.7 mm	Quick Connect	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	10 A	10 A	Flange Panel Mount	Fuse Holder	IEC 320-C14
TE Connectivity Raychem Cable Protection 4-6609959-7	CSA UL VDE	Switch On-Off	26.92 mm	54.1 mm	120 VAC	Conversion Clip Voltage Selector	0.187 "	4.7 mm	Quick Connect	Unfiltered - Commercial	Receptacle Male Blades - Module		10 A	Flange Panel Mount	Fuse Holder	IEC 320-C14
TE Connectivity Raychem Cable Protection 5-6609959-4	CSA UL VDE	Switch On-Off	26.92 mm	54.1 mm	120 VAC	Voltage Selector	0.187 "	4.7 mm	Quick Connect	Unfiltered - Commercial	Receptacle Male Blades - Module		10 A	Flange Panel Mount	Fuse Holder Twin Fused	IEC 320-C14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	60	$ 15.38

Description

General part information

6609959 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
