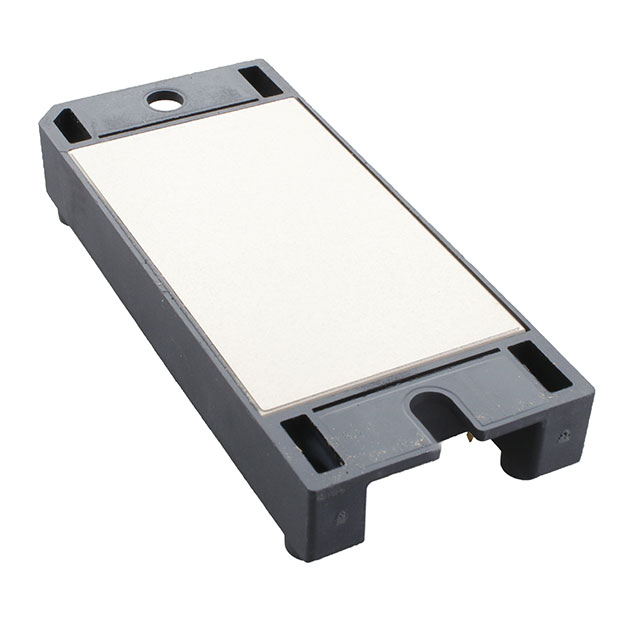

VUB120-16NOXT

Active

IXYS

BRIDGE RECT 3P 1.6KV 180A MODULE

Search across all available documentation for this part.

Active

IXYS

BRIDGE RECT 3P 1.6KV 180A MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	VUB120-16NOXT

Current - Average Rectified (Io)	180 A
Current - Reverse Leakage @ Vr	100 µA
Diode Type	Three Phase (Braking)
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Supplier Device Package	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	2.75 V
Voltage - Peak Reverse (Max)	1.6 kV

Part	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Supplier Device Package	Voltage - Peak Reverse (Max)	Current - Average Rectified (Io)	Mounting Type	Package / Case	Technology	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]
IXYS VUB120-16NOXT	2.75 V	150 °C	-40 °C	Three Phase (Braking)	Module	1.6 kV	180 A	Through Hole	Module	Standard	100 µA
IXYS VUB120-16NOX	2.75 V	150 °C	-40 °C	Three Phase (Braking)	Module	1.6 kV	180 A	Through Hole	Module	Standard	100 µA
IXYS VUB120-12NO2	2.7 V	150 °C	-40 °C	Three Phase (Braking)	V2-PAK		188 A	Chassis Mount	V2-PAK	Standard	500 µA	1.2 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Three Phase (Braking) Standard 1.6 kV Through Hole Module
