Q-2C00V0003003M

Active

Amphenol Custom Cable

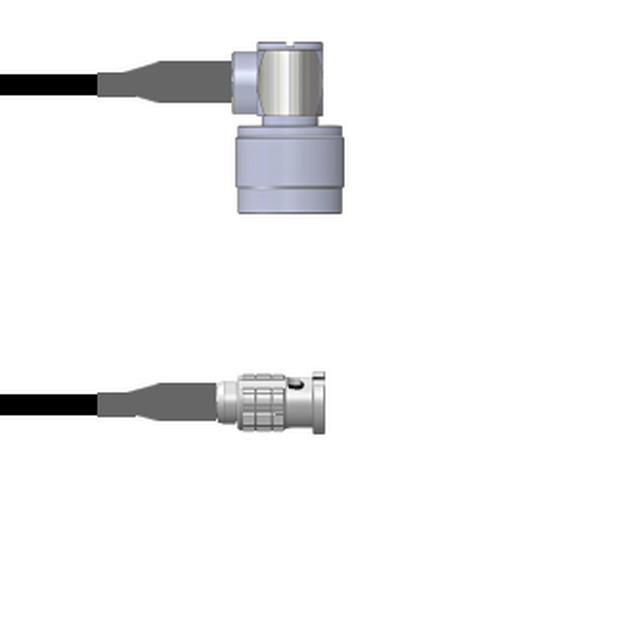

CBL ASSY HDBNC-NTYPE PLG-PL 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C00V0003003M

Active

Amphenol Custom Cable

CBL ASSY HDBNC-NTYPE PLG-PL 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C00V0003003M

1st Connector	HD-BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	HD-BNC to N-Type

Q-2C00V0 Series

Part	2nd Connector Mounting Type	2nd Connector	2nd Contact Gender	Style	1st Contact Gender	Length	Length	Cable Type	Features	Overall Impedance	Frequency - Max [Max]	1st Connector	1st Connector Mounting Type	Color	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2C00V0003012i	Free Hanging (In-Line)	N-Type Plug Right Angle	Male	HD-BNC to N-Type	Male	12 "	304.8 mm	RG-174	Shielded	50 Ohms	6000 MHz	HD-BNC Plug	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2C00V0005108i	Free Hanging (In-Line)	N-Type Plug Right Angle	Male	HD-BNC to N-Type	Male	108 in	2.7 m	RG-316	Shielded	50 Ohms	6000 MHz	HD-BNC Plug	Free Hanging (In-Line)	Copper	9 ft
Amphenol Custom Cable Q-2C00V00051.5M	Free Hanging (In-Line)	N-Type Plug Right Angle	Male	HD-BNC to N-Type	Male	59.1 in	1.5 m	RG-316	Shielded	50 Ohms	6000 MHz	HD-BNC Plug	Free Hanging (In-Line)	Copper	4.9 ft
Amphenol Custom Cable Q-2C00V0003003M	Free Hanging (In-Line)	N-Type Plug Right Angle	Male	HD-BNC to N-Type	Male	118.1 in	3 m	RG-174	Shielded	50 Ohms	6000 MHz	HD-BNC Plug	Free Hanging (In-Line)	Black	9.8 '
Amphenol Custom Cable Q-2C00V0003.25M	Free Hanging (In-Line)	N-Type Plug Right Angle	Male	HD-BNC to N-Type	Male			RG-174	Shielded	50 Ohms	6000 MHz	HD-BNC Plug	Free Hanging (In-Line)	Black		9.843 "	250 mm
Amphenol Custom Cable Q-2C00V00032.5M	Free Hanging (In-Line)	N-Type Plug Right Angle	Male	HD-BNC to N-Type	Male	98.4 in	2.5 m	RG-174	Shielded	50 Ohms	6000 MHz	HD-BNC Plug	Free Hanging (In-Line)	Black	8.2 '
Amphenol Custom Cable Q-2C00V0003072i	Free Hanging (In-Line)	N-Type Plug Right Angle	Male	HD-BNC to N-Type	Male	72 in	1.8 m	RG-174	Shielded	50 Ohms	6000 MHz	HD-BNC Plug	Free Hanging (In-Line)	Black	6 ft
Amphenol Custom Cable Q-2C00V0005048i	Free Hanging (In-Line)	N-Type Plug Right Angle	Male	HD-BNC to N-Type	Male	48 in	1200 mm	RG-316	Shielded	50 Ohms	6000 MHz	HD-BNC Plug	Free Hanging (In-Line)	Copper	4 ft
Amphenol Custom Cable Q-2C00V0003018i	Free Hanging (In-Line)	N-Type Plug Right Angle	Male	HD-BNC to N-Type	Male			RG-174	Shielded	50 Ohms	6000 MHz	HD-BNC Plug	Free Hanging (In-Line)	Black			457.2 mm	457.2 mm
Amphenol Custom Cable Q-2C00V0005036i	Free Hanging (In-Line)	N-Type Plug Right Angle	Male	HD-BNC to N-Type	Male	36 in	91.44 cm	RG-316	Shielded	50 Ohms	6000 MHz	HD-BNC Plug	Free Hanging (In-Line)	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 85.67
		25	$ 79.83
		50	$ 73.99
		100	$ 68.98
		250	$ 64.81

Description

General part information

Q-2C00V0 Series

Cable Assembly Coaxial HD-BNC to N-Type RG-174 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
