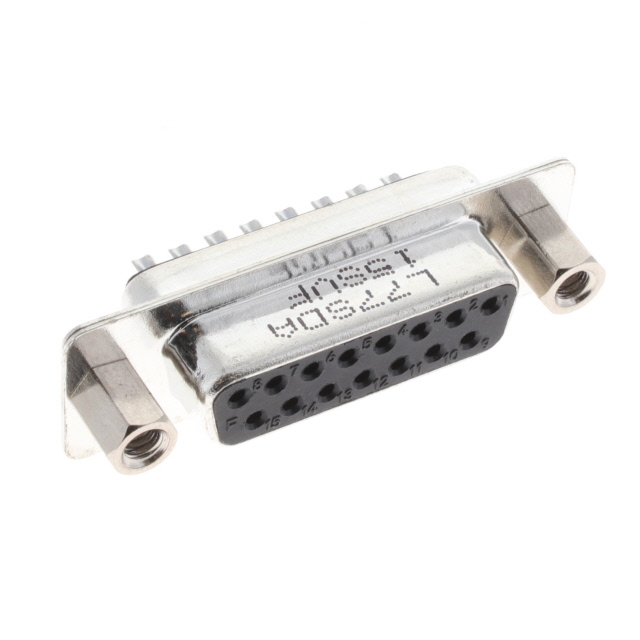

L77SDA15SVF

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 15POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

L77SDA15SVF

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 15POS SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77SDA15SVF

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Voltage Rating	250 VDC
Wire Gauge	20 AWG

L77SDA15 Series

Part	Connector Type	Flange Feature	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Backset Spacing	Backset Spacing	Material Flammability Rating	Color	Connector Style	Shell Size, Connector Layout	Contact Finish	Termination	Number of Positions	Contact Material	Number of Rows	Contact Form	Dielectric Material	Current Rating (Amps)	Contact Type	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L77SDA15S1ACH4RC309	Receptacle Female Sockets	4-40 Board Side	250 VDC	-55 °C	125 °C	0.76 Ám	30 Áin	Through Hole Right Angle	0.406 in	10.3 mm	UL94 V-0	Black	D-Sub	2	Gold	Solder	15	Phosphor Bronze	2	Stamped	Thermoplastic Glass Filled	3 A	Signal
Amphenol ICC (Commercial Products) L77SDA15S1ACH4F48	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	250 VDC	-55 °C	125 °C			Through Hole Right Angle	0.406 in	10.3 mm	UL94 V-0	Black	D-Sub	2	Gold	Solder	15	Phosphor Bronze	2	Stamped	Thermoplastic Glass Filled	3 A	Signal	Flash
Amphenol ICC (Commercial Products) L77SDA15SA4CH4FC309	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	250 VDC	-55 °C	125 °C	0.76 Ám	30 Áin	Through Hole Right Angle	0.318 "	8.08 mm	UL94 V-0	Black	D-Sub	2	Gold	Solder	15	Phosphor Bronze	2	Stamped	Thermoplastic Glass Filled	3 A	Signal
Amphenol ICC (Commercial Products) L77SDA15STA113	Receptacle Female Sockets	Housing/Shell (Unthreaded)	250 VDC	-55 °C	125 °C			Through Hole			UL94 V-0	Black	D-Sub	2	Gold	Solder	15	Phosphor Bronze	2	Stamped	Thermoplastic Glass Filled	3 A	Signal	Flash
Amphenol ICC (Commercial Products) L77SDA15SVF	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	250 VDC	-55 °C	105 ░C			Free Hanging (In-Line)			UL94 V-0	Black	D-Sub	2	Gold		15	Brass	2	Stamped	Thermoplastic Glass Filled	3 A	Signal	Flash	20 AWG
Amphenol ICC (Commercial Products) L77SDA15SA4CH4R	Receptacle Female Sockets	4-40 Board Side	250 VDC	-55 °C	125 °C			Through Hole Right Angle	0.318 "	8.08 mm	UL94 V-0	Black	D-Sub	2	Gold	Solder	15	Phosphor Bronze	2	Stamped	Thermoplastic Glass Filled	3 A	Signal	Flash
Amphenol ICC (Commercial Products) L77SDA15SA4CH4F48	Receptacle Female Sockets	Female Screwlock (4-40) Mating Side	250 VDC	-55 °C	125 °C			Through Hole Right Angle	0.318 "	8.08 mm	UL94 V-0	Black	D-Sub	2	Gold	Solder	15	Phosphor Bronze	2	Stamped	Thermoplastic Glass Filled	3 A	Signal	Flash
Amphenol ICC (Commercial Products) L77SDA15S1ACH4R	Receptacle Female Sockets	4-40 Board Side	250 VDC	-55 °C	125 °C			Through Hole Right Angle	0.406 in	10.3 mm	UL94 V-0	Black	D-Sub	2	Gold	Solder	15	Phosphor Bronze	2	Stamped	Thermoplastic Glass Filled	3 A	Signal	Flash
Amphenol ICC (Commercial Products) L77SDA15SA4CH4RC309	Receptacle Female Sockets	4-40 Board Side	250 VDC	-55 °C	125 °C	0.76 Ám	30 Áin	Through Hole Right Angle	0.318 "	8.08 mm	UL94 V-0	Black	D-Sub	2	Gold	Solder	15	Phosphor Bronze	2	Stamped	Thermoplastic Glass Filled	3 A	Signal
Amphenol ICC (Commercial Products) L77SDA15SOL2C309	Receptacle Female Sockets	Housing/Shell (Unthreaded)	250 VDC	-55 °C	125 °C	0.76 Ám	30 Áin	Through Hole			UL94 V-0	Black	D-Sub	2	Gold	Solder	15	Phosphor Bronze	2	Stamped	Thermoplastic Glass Filled	3 A	Signal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.20
		10	$ 1.04
		25	$ 1.00
		70	$ 0.98
		140	$ 0.93
		280	$ 0.84
		490	$ 0.78

Description

General part information

L77SDA15 Series

15 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

No documents available
