Q-2O03E000D012i

Active

Amphenol Custom Cable

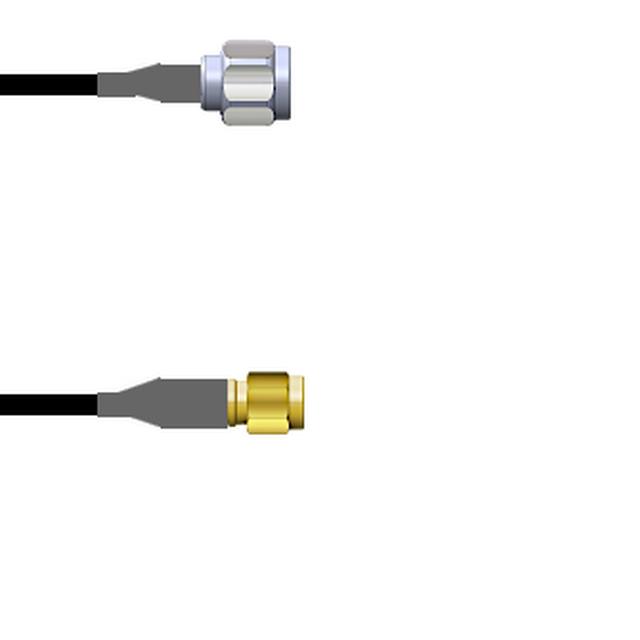

CBL ASSY SMA-NTYPE PLUG-PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2O03E000D012i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PLUG-PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2O03E000D012i

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 195
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2O03E0 Series

Part	1st Contact Gender	Frequency - Max [Max]	2nd Connector Mounting Type	Length	Length	Length	1st Connector	2nd Contact Gender	Overall Impedance	Features	Color	1st Connector Mounting Type	2nd Connector	Style	Cable Type	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2O03E000D072i	Male	6000 MHz	Free Hanging (In-Line)	6 ft	72 in	1.8 m	SMA Plug	Male	50 Ohms	Shielded	Black	Free Hanging (In-Line)	N-Type Plug	SMA to N-Type	LMR 195
Amphenol Custom Cable Q-2O03E000D0.5M	Male	6000 MHz	Free Hanging (In-Line)		19.69 "	50 cm	SMA Plug	Male	50 Ohms	Shielded	Black	Free Hanging (In-Line)	N-Type Plug	SMA to N-Type	LMR 195
Amphenol Custom Cable Q-2O03E000D012i	Male	6000 MHz	Free Hanging (In-Line)		12 "	304.8 mm	SMA Plug	Male	50 Ohms	Shielded	Black	Free Hanging (In-Line)	N-Type Plug	SMA to N-Type	LMR 195
Amphenol Custom Cable Q-2O03E000D084i	Male	6000 MHz	Free Hanging (In-Line)	7 ft	84 in	2.1 m	SMA Plug	Male	50 Ohms	Shielded	Black	Free Hanging (In-Line)	N-Type Plug	SMA to N-Type	LMR 195
Amphenol Custom Cable Q-2O03E000D048i	Male	6000 MHz	Free Hanging (In-Line)	4 ft	48 in	1200 mm	SMA Plug	Male	50 Ohms	Shielded	Black	Free Hanging (In-Line)	N-Type Plug	SMA to N-Type	LMR 195
Amphenol Custom Cable Q-2O03E000D003M	Male	6000 MHz	Free Hanging (In-Line)	9.8 '	118.1 in	3 m	SMA Plug	Male	50 Ohms	Shielded	Black	Free Hanging (In-Line)	N-Type Plug	SMA to N-Type	LMR 195
Amphenol Custom Cable Q-2O03E000D002M	Male	6000 MHz	Free Hanging (In-Line)	6.6 ft	78.7 in	2 m	SMA Plug	Male	50 Ohms	Shielded	Black	Free Hanging (In-Line)	N-Type Plug	SMA to N-Type	LMR 195
Amphenol Custom Cable Q-2O03E000D.25M	Male	6000 MHz	Free Hanging (In-Line)				SMA Plug	Male	50 Ohms	Shielded	Black	Free Hanging (In-Line)	N-Type Plug	SMA to N-Type	LMR 195	9.843 "	250 mm
Amphenol Custom Cable Q-2O03E000D108i	Male	6000 MHz	Free Hanging (In-Line)	9 ft	108 in	2.7 m	SMA Plug	Male	50 Ohms	Shielded	Black	Free Hanging (In-Line)	N-Type Plug	SMA to N-Type	LMR 195
Amphenol Custom Cable Q-2O03E000D018i	Male	6000 MHz	Free Hanging (In-Line)				SMA Plug	Male	50 Ohms	Shielded	Black	Free Hanging (In-Line)	N-Type Plug	SMA to N-Type	LMR 195		457.2 mm	457.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.89
		25	$ 80.29
		50	$ 78.70
		100	$ 77.11
		250	$ 75.52

Description

General part information

Q-2O03E0 Series

Cable Assembly Coaxial SMA to N-Type LMR 195 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
