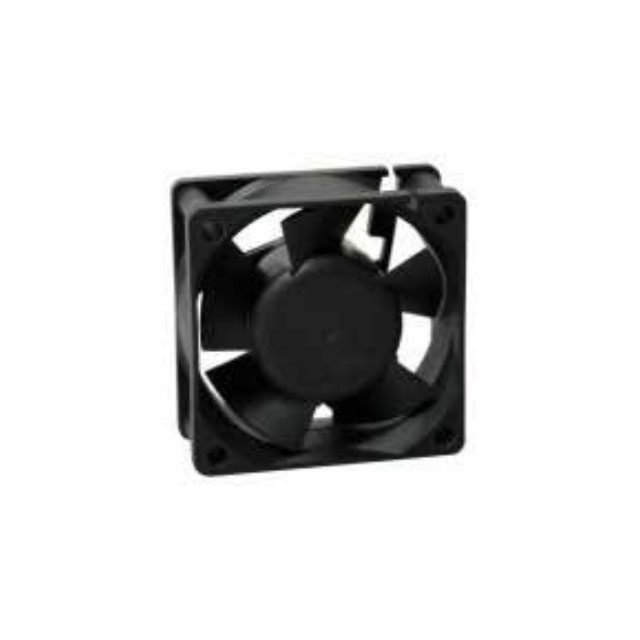

MR6025X24B-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 60X25.5MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DC Lead Wire Specs

MR6025X24B-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 60X25.5MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet DC Lead Wire Specs

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MR6025X24B-RSR

Air Flow	39 CFM
Air Flow	1.09 m³/min
Bearing Type	Ball
Current Rating (Amps)	0.18 A
Fan Type	Tubeaxial
Features	Auto Restart
Material - Blade	Plastic
Material - Frame	Plastic
Noise	51 dB(A)
RPM	8000 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.73 in H2O
Static Pressure	181.8 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Width [x]	25.5 mm

MR6025 Series

Part	Air Flow	Air Flow	Width [x]	RPM	Current Rating (Amps)	Material - Frame	Features	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Bearing Type	Termination	Noise	Static Pressure	Static Pressure	Material - Blade	Fan Type
Mechatronics Bearing Group MR6025M24B-RSR	0.75 mł/min	26.8 CFM	25.5 mm	5500 RPM	110 mA	Plastic	Auto Restart	60 mm	60 mm	24 VDC	Ball	2 Wire Leads	40 dB(A)	87.2 Pa	0.35 in H2O	Plastic	Tubeaxial
Mechatronics Bearing Group MR6025E24B-RSR	1.03 m³/min	36.6 CFM	25.5 mm	7500 RPM		Plastic	Auto Restart	60 mm	60 mm	24 VDC	Ball	2 Wire Leads	50 dB(A)	159.4 Pa	0.64 in H2O	Plastic	Tubeaxial
Mechatronics Bearing Group MR6025X24B-RSR	1.09 m³/min	39 CFM	25.5 mm	8000 RPM	0.18 A	Plastic	Auto Restart	60 mm	60 mm	24 VDC	Ball	2 Wire Leads	51 dB(A)	181.8 Pa	0.73 in H2O	Plastic	Tubeaxial
Mechatronics Bearing Group MR6025M12B-RSR	0.75 mł/min	26.8 CFM	25.5 mm	5500 RPM	0.21 A	Plastic	Auto Restart	60 mm	60 mm	12 VDC	Ball	2 Wire Leads	40 dB(A)	87.2 Pa	0.35 in H2O	Plastic	Tubeaxial
Mechatronics Bearing Group MR6025X12B1+6-RSR	1.1 m³/min	39.2 CFM	25.5 mm	8000 RPM	360 mA	Plastic	Auto Restart PWM Control Speed Sensor (Tach)	60 mm	60 mm	12 VDC	Ball	4 Wire Leads	51 dB(A)	181.8 Pa	0.73 in H2O	Plastic	Tubeaxial
Mechatronics Bearing Group MR6025L12B-RSR	0.613 m³/min	21.9 CFM	25.5 mm	4500 RPM	150 mA	Plastic	Auto Restart	60 mm	60 mm	12 VDC	Ball	2 Wire Leads	35 dB	57.3 Pa	0.23 in H2O	Plastic	Tubeaxial
Mechatronics Bearing Group MR6025H24B-RSR	0.888 m³/min	31.7 CFM	25.5 mm	6500 RPM		Plastic	Auto Restart	60 mm	60 mm	24 VDC	Ball	2 Wire Leads	46 dB(A)	119.6 Pa	0.48 in H2O	Plastic	Tubeaxial
Mechatronics Bearing Group MR6025E12B-RSR	1.03 m³/min	36.6 CFM	25.5 mm	7500 RPM	0.31 A	Plastic	Auto Restart	60 mm	60 mm	12 VDC	Ball	2 Wire Leads	50 dB(A)	159.4 Pa	0.64 in H2O	Plastic	Tubeaxial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.47

Description

General part information

MR6025 Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 39.0 CFM (1.09mł/min) 2 Wire Leads
