5550H-10-12-5

Active

3M (TC)

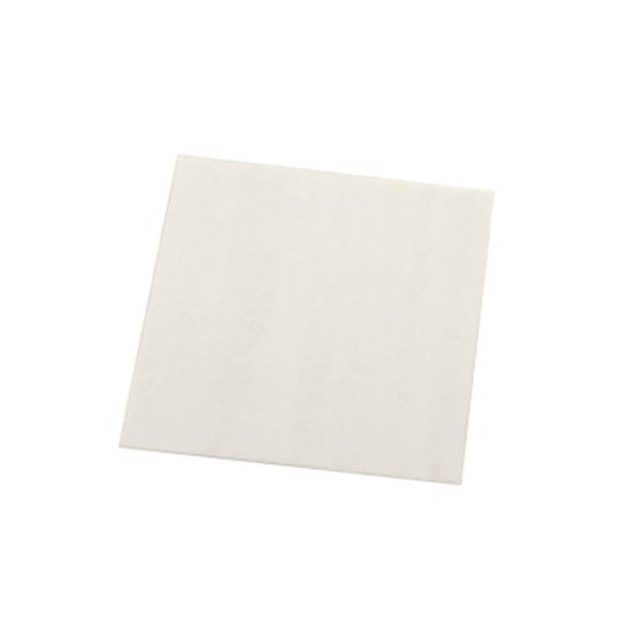

THERM PAD 5M X 12MM GRY/WHT

Search across all available documentation for this part.

Active

3M (TC)

THERM PAD 5M X 12MM GRY/WHT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5550H-10-12-5	12MM Series

Adhesive	Tacky - Both Sides	Tacky - Both Sides
Backing, Carrier	Polyethylene-Terephthalate (PET)	Polyethylene-Terephthalate (PET)
Color	Gray, White	Gray, White
Material	Acrylic Elastomer	Acrylic Elastomer
Outline [x]	5 m	5 m
Outline [y]	12 mm	12 mm
Shape	Rectangular	Rectangular
Shelf Life	12 Months	12 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature	70 °F	70 °F
Storage/Refrigeration Temperature	21 °C	21 °C
Thermal Conductivity	3 W/m-K	3 W/m-K
Thickness	0.0394 in	0.0197 - 0.0394 in
Thickness	1 mm	0.5 - 1 mm
Type	Interface Pad, Roll	Interface Pad, Roll
Usage	Thermally Conductive	Thermally Conductive

THERM PAD 5M X 12MM GRY/WHT

Part	Adhesive	Usage	Shape	Shelf Life Start	Color	Outline [x]	Outline [y]	Type	Backing, Carrier	Shelf Life	Material	Thermal Conductivity	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Thickness	Thickness
3M (TC) 5550H-10-12-5	Tacky - Both Sides	Thermally Conductive	Rectangular	Date of Manufacture	Gray, White	5 m	12 mm	Interface Pad, Roll	Polyethylene-Terephthalate (PET)	12 Months	Acrylic Elastomer	3 W/m-K	70 °F	21 °C	0.0394 in	1 mm
3M (TC) 5550H-05-12-5	Tacky - Both Sides	Thermally Conductive	Rectangular	Date of Manufacture	Gray, White	5 m	12 mm	Interface Pad, Roll	Polyethylene-Terephthalate (PET)	12 Months	Acrylic Elastomer	3 W/m-K	70 °F	21 °C	0.0197 in	0.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Gray, White 5.00m x 12.00mm Rectangular Tacky - Both Sides
