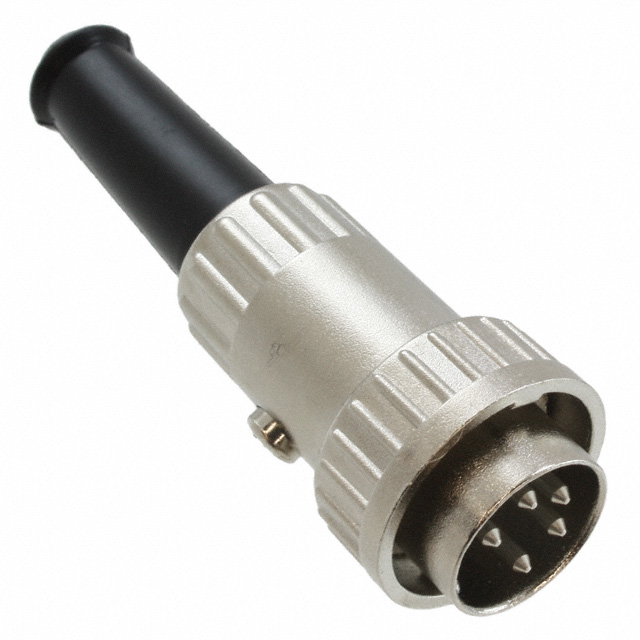

12CL5MX

Active

Switchcraft Inc.

3A MALE TIN 5P CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Search across all available documentation for this part.

Active

Switchcraft Inc.

3A MALE TIN 5P CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	12CL5MX

Color	Silver
Connector Type	Plug, Male Pins
Current Rating (Amps)	3 A
Fastening Type	Push-Twist
Features	Backshell, Strain Relief, Cable Clamp
Insert Material	Plastic
Mounting Type	Free Hanging (In-Line)
Orientation	4
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	DIN (240 Degree)
Termination	Solder
Voltage Rating	34 V

3A MALE TIN 5P CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Part	Connector Type	Features	Shell Size - Insert	Primary Material	Shell Finish	Shell Material	Fastening Type	Orientation	Insert Material	Current Rating (Amps)	Mounting Type	Termination	Color	Voltage Rating
Switchcraft Inc. 12CL5MX	Male Pins, Plug	Backshell, Cable Clamp, Strain Relief	DIN (240 Degree)	Metal	Nickel	Zinc Die Cast	Push-Twist	4	Plastic	3 A	Free Hanging (In-Line)	Solder	Silver	34 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Male Pins Solder
