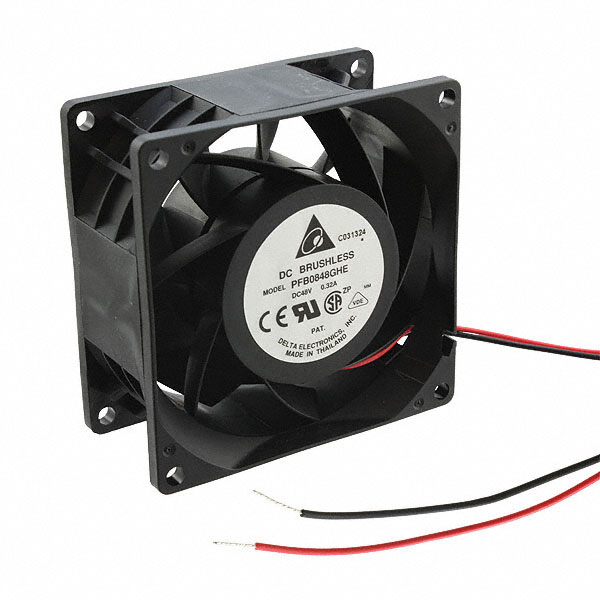

PFB0848GHE

Obsolete

Delta Electronics

FAN AXIAL 80X38MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 80X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [y]	Size / Dimension [x]	Material - Blade	Air Flow	Air Flow	Material - Frame	Lifetime @ Temp.	Noise	Power (Watts)	Weight	Weight	Voltage - Rated [custom]	Termination	Fan Type	Bearing Type	Current Rating (Amps)	Width [y]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	RPM	Static Pressure	Static Pressure	Features
Delta Electronics PFB0848GHE	CE CSA UL VDE	28 V	56 VDC	80 mm	80 mm	Plastic	86.4 CFM	2.42 m³/min	Plastic	50000 Hrs	55.5 dB	12.96 W	205.02 g	0.452 lb	48 VDC	2 Wire Leads	Tubeaxial	Ball	270 mA	38 mm	-10 °C	-10 °C	60 °C	60 °C	6100 RPM	223.7 Pa	0.898 in H2O
Delta Electronics PFB0848UHE-R00	CE CSA UL VDE	28 V	56 VDC	80 mm	80 mm	Plastic	107.3 CFM	3 m³/min	Plastic	50000 Hrs	61 dB(A)	20.16 W	205.02 g	0.452 lb	48 VDC	3 Wire Leads	Tubeaxial	Ball	0.42 A	38 mm	-10 °C	-10 °C	60 °C	60 °C	7500 RPM	340.8 Pa	1.368 in H2O	Locked Rotor Sensor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 80mm L x 80mm H Ball 86.4 CFM (2.42m³/min) 2 Wire Leads
