CT452-H00MRSN08

Active

Allegro MicroSystems

XTREMESENSE TMR 1MHZ BANDWIDTH C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsXtremeSense™ TMR technology

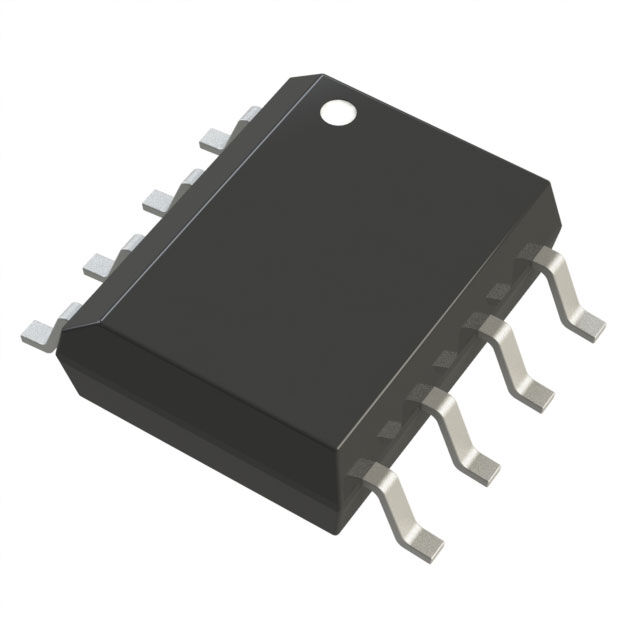

CT452-H00MRSN08

Active

Allegro MicroSystems

XTREMESENSE TMR 1MHZ BANDWIDTH C

Deep-Dive with AI

DocumentsXtremeSense™ TMR technology

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT452-H00MRSN08

Current - Supply (Max) [Max]	9 mA
For Measuring	AC/DC
Frequency	DC ~ 1MHz
Linearity	0.2 %
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output	Analog Voltage
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Polarization	Bidirectional
Response Time	300 ns
Sensor Type	Magnetoresistive
Supplier Device Package	8-SOIC
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.75 V

CT452 Series

Part	Supplied Contents	Sensitivity	Sensor Type	Sensing Range	Utilized IC / Part	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	For Measuring	Frequency	Number of Channels	Package / Case	Package / Case [y]	Package / Case [x]	Operating Temperature [Max]	Operating Temperature [Min]	Output	Supplier Device Package	Response Time	Mounting Type	Linearity	Polarization	Current - Supply (Max) [Max]	Accuracy	Package / Case [custom]	Package / Case [custom]	Sensing Range [Min]	Sensing Range [Max]
Allegro MicroSystems CTD452-BB-06U	Board(s)	666.7 mV/mT	Current Sensor	6 mT	CT452	Analog	4.75 V	5.5 V
Allegro MicroSystems CT452-H00MRSN08			Magnetoresistive				4.75 V	5.5 V	AC/DC	DC ~ 1MHz	1	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	Analog Voltage	8-SOIC	300 ns	Surface Mount	0.2 %	Bidirectional	9 mA
Allegro MicroSystems CT452-H06MRSN08		333.3 mV/mT	Magnetoresistive				4.75 V	5.5 V	AC/DC	DC ~ 1MHz	1	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	Ratiometric Voltage	8-SOIC	300 ns	Surface Mount	0.1 %	Bidirectional	9 mA	0.7 %
Allegro MicroSystems CT452-H00DRSN08			Magnetoresistive				4.75 V	5.5 V	AC/DC	DC ~ 1MHz	1	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	Analog Voltage	8-SOIC	300 ns	Surface Mount	0.3 %	Unidirectional	9 mA
Allegro MicroSystems CTD452-PT-06U	Board(s)	666.7 mV/mT	Current Sensor	6 mT	CT452	Analog	4.75 V	5.5 V
Allegro MicroSystems CT452-H06DRTS08		666.7 mV/mT	Magnetoresistive				4.75 V	5.5 V	AC/DC	DC ~ 1MHz	1	8-TSSOP			125 °C	-40 °C	Ratiometric Voltage	8-TSSOP	300 ns	Surface Mount	0.2 %	Unidirectional	9 mA	0.7 %	0.173 "	4.4 mm
Allegro MicroSystems CTD452-06B	Board(s)	333.3 mV/mT	Current Sensor		CT452	Analog	4.75 V	5.5 V																			-6 mT	6 mT
Allegro MicroSystems CTD452-06U	Board(s)	666.7 mV/mT	Current Sensor	6 mT	CT452	Analog	4.75 V	5.5 V
Allegro MicroSystems CT452-H06DRSN08		666.7 mV/mT	Magnetoresistive				4.75 V	5.5 V	AC/DC	DC ~ 1MHz	1	8-SOIC	3.9 mm	0.154 in	125 °C	-40 °C	Ratiometric Voltage	8-SOIC	300 ns	Surface Mount	0.2 %	Unidirectional	9 mA	0.7 %
Allegro MicroSystems CT452-H00DRTS08			Magnetoresistive				4.75 V	5.5 V	AC/DC	DC ~ 1MHz	1	8-TSSOP			125 °C	-40 °C	Analog Voltage	8-TSSOP	300 ns	Surface Mount	0.3 %	Unidirectional	9 mA		0.173 "	4.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6000	$ 1.91

Description

General part information

CT452 Series

Current Sensor 1 Channel Magnetoresistive Bidirectional 8-SOIC (0.154", 3.90mm Width)

Documents

Technical documentation and resources

XtremeSense™ TMR technology

Datasheet
