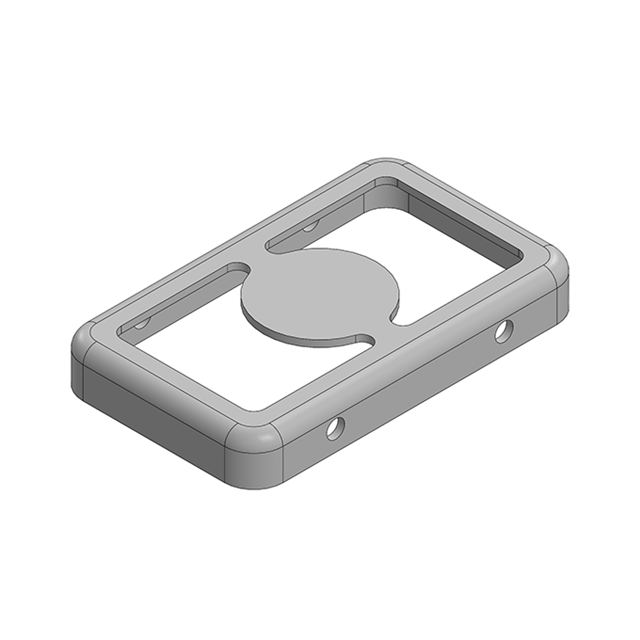

MS148-10F

Active

Masach Tech Ltd.

RF SHIELD 0.350"X0.583" SOLDER

Search across all available documentation for this part.

Active

Masach Tech Ltd.

RF SHIELD 0.350"X0.583" SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

15.2 X 9.3 X 2MM TWO-PIECE DRAWN-SEAMLESS RF SHIELD/EMI SHIELD COVER (CRS)

Part	Length - Overall	Length - Overall	Width - Overall [x]	Width - Overall [x]	Ventilation	Mounting Type	Height - Overall [z]	Height - Overall [z]	Type	Width - Overall [y]	Width - Overall [y]	Length - Overall [x]	Length - Overall [x]
Masach Tech Ltd. MS148-10C	0.598 in	15.2 mm	0.366 in	9.3 mm	Non-Vented	Snap Fit	0.079 in	2 mm	Cover
Masach Tech Ltd. MS148-10F-NS						Solder	0.079 in	2 mm	Frame	8.9 mm	0.35 in	14.8 mm	0.583 in
Masach Tech Ltd. MS148-10F						Solder	0.079 in	2 mm	Frame	8.9 mm	0.35 in	14.8 mm	0.583 in
Masach Tech Ltd. MS148-10C-NS	0.598 in	15.2 mm	0.366 in	9.3 mm	Non-Vented	Snap Fit	0.079 in	2 mm	Cover
Masach Tech Ltd. MS148-10S-NS					Non-Vented	Solder	0.079 in	2 mm	Shield, 1-Piece	8.9 mm	0.35 in	14.8 mm	0.583 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Frame 0.350" (8.90mm) X 0.583" (14.80mm) Solder
