950506-6102-AR
Obsolete3M (TC)

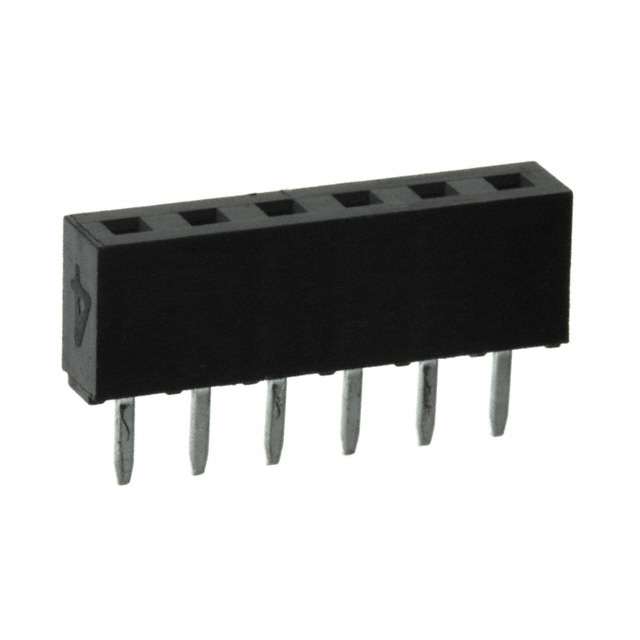

CONN RCPT 6POS 0.079 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
950506-6102-AR
Obsolete3M (TC)
CONN RCPT 6POS 0.079 GOLD PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 950506-6102-AR |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | 1.02 Ám |
| Contact Finish Thickness - Post | 40 Áin |
| Contact Length - Post | 2.5 mm |
| Contact Length - Post | 0.098 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 4.3 mm |
| Insulation Height | 0.169 " |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Termination | Solder |
| Voltage Rating | 1000 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
950506 Series
6 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Documents
Technical documentation and resources
