5182-3PG-3DC

Active

Conxall/Switchcraft

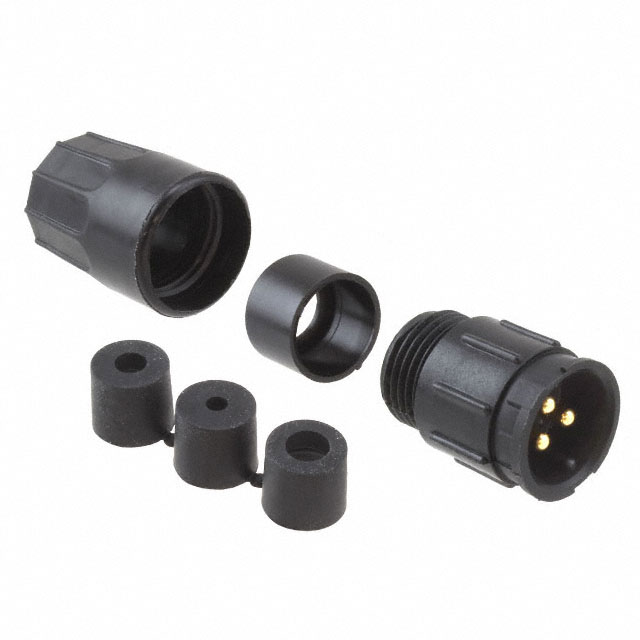

CONN RCPT MALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Cable Assemblies/Connector Catalog

5182-3PG-3DC

Active

Conxall/Switchcraft

CONN RCPT MALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet Cable Assemblies/Connector Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.15
		10	$ 12.55
		25	$ 12.06
		50	$ 11.58
		100	$ 10.94
		300	$ 9.97
		500	$ 9.33
		1000	$ 8.56

Description

General part information

5182-3PG Series

3 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Cable Assemblies/Connector Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5182-3PG-3DC	5182-3PG Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	5.33 - 7.62 mm
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	0.21 - 0.3 in
Cable Opening	-	0.23 - 0.32 in
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	8.13 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Cable Clamp, Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

5182-3PG Series

CONN RCPT MALE 3P GOLD SLDR CUP

Part	Shielding	Contact Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Connector Type	Features	Backshell Material, Plating	Color	Ingress Protection	Orientation	Fastening Type	Voltage Rating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 5182-3PG-521	Unshielded	Brass	5.33 mm	5.84 mm	0.21 in	0.23 in	Male Pins, Receptacle	Backshell, Cable Clamp	Nylon, Polyamide (PA)	Black	Weathertight	Keyed	Bayonet Lock	600 V	Free Hanging (In-Line)	-40 °C	115 °C	Plastic	Gold
Conxall/Switchcraft 5182-3PG-515	Unshielded	Brass					Male Pins, Receptacle	Backshell, Cable Clamp	Nylon, Polyamide (PA)	Black	Weathertight	Keyed	Bayonet Lock	600 V	Free Hanging (In-Line)	-40 °C	115 °C	Plastic	Gold	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 5182-3PG-530	Unshielded	Brass	7.62 mm		0.3 in	0.32 in	Male Pins, Receptacle	Backshell, Cable Clamp	Nylon, Polyamide (PA)	Black	Weathertight	Keyed	Bayonet Lock	600 V	Free Hanging (In-Line)	-40 °C	115 °C	Plastic	Gold			8.13 mm
Conxall/Switchcraft 5182-3PG-518	Unshielded	Brass					Male Pins, Receptacle	Backshell, Cable Clamp	Nylon, Polyamide (PA)	Black	Weathertight	Keyed	Bayonet Lock	600 V	Free Hanging (In-Line)	-40 °C	115 °C	Plastic	Gold				4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5182-3PG-528	Unshielded	Brass	7.11 mm	7.37 mm	0.28 in	0.29 in	Male Pins, Receptacle	Backshell, Cable Clamp	Nylon, Polyamide (PA)	Black	Weathertight	Keyed	Bayonet Lock	600 V	Free Hanging (In-Line)	-40 °C	115 °C	Plastic	Gold
Conxall/Switchcraft 5182-3PG-3DC	Unshielded	Brass					Male Pins, Receptacle	Backshell	Nylon, Polyamide (PA)	Black	Weathertight	Keyed	Bayonet Lock	600 V	Free Hanging (In-Line)	-40 °C	115 °C	Plastic	Gold
Conxall/Switchcraft 5182-3PG-330	Unshielded	Brass	7.62 mm		0.3 in	0.32 in	Male Pins, Receptacle	Backshell	Nylon, Polyamide (PA)	Black	Weathertight	Keyed	Bayonet Lock	600 V	Free Hanging (In-Line)	-40 °C	115 °C	Plastic	Gold			8.13 mm
Conxall/Switchcraft 5182-3PG-524	Unshielded	Brass	6.1 mm	6.86 mm	0.24 in	0.27 in	Male Pins, Receptacle	Backshell, Cable Clamp	Nylon, Polyamide (PA)	Black	Weathertight	Keyed	Bayonet Lock	600 V	Free Hanging (In-Line)	-40 °C	115 °C	Plastic	Gold
Conxall/Switchcraft 5182-3PG-315	Unshielded	Brass					Male Pins, Receptacle	Backshell	Nylon, Polyamide (PA)	Black	Weathertight	Keyed	Bayonet Lock	600 V	Free Hanging (In-Line)	-40 °C	115 °C	Plastic	Gold	0.15 in, 0.17 in	3.81 mm, 4.32 mm
