LMR50410Y3FQDBVRQ1

Active

Texas Instruments

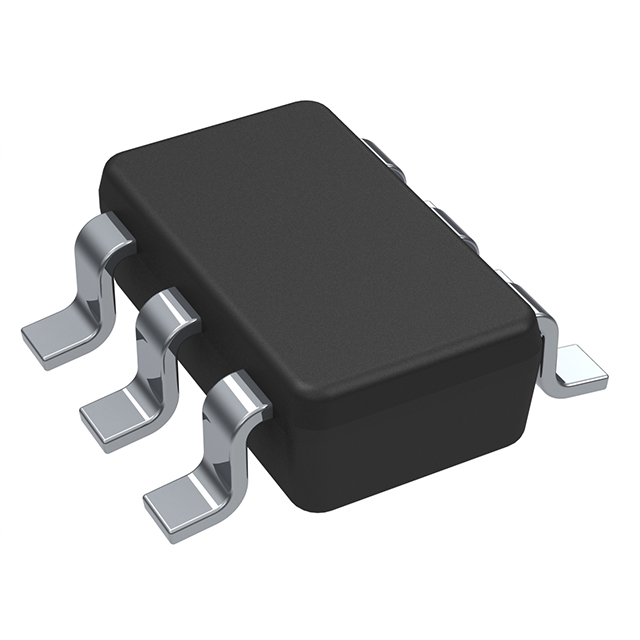

IC REG BUCK 3.3V 1A SOT23-6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LMR50410Y3FQDBVRQ1

Active

Texas Instruments

IC REG BUCK 3.3V 1A SOT23-6

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.65
		10	$ 1.48
		25	$ 1.40
		100	$ 1.15
		250	$ 1.08
		500	$ 0.95
		1000	$ 0.75
	Digi-Reel®	1	$ 1.65
		10	$ 1.48
		25	$ 1.40
		100	$ 1.15
		250	$ 1.08
		500	$ 0.95
		1000	$ 0.75
	Tape & Reel (TR)	3000	$ 0.70
		6000	$ 0.67
		15000	$ 0.64

Description

General part information

LMR50410 Series

Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 1A SOT-23-6

Documents

Technical documentation and resources

Specification	LMR50410Y3FQDBVRQ1	LMR50410 Series

Board Type	-	Fully Populated
Current - Output	1 A	1 A
Frequency - Switching	2.1 MHz	2.1 - 700 MHz
Function	Step-Down	Step-Down
Grade	Automotive	Automotive
Main Purpose	-	DC/DC, Step Down
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Configuration	Positive	Positive
Output Type	1.81 mOhm	1.81 mOhm
Output Type	-	Adjustable
Outputs and Type	-	Non-Isolated
Outputs and Type	-	1
Package / Case	SOT-23-6	SOT-23-6
Qualification	AEC-Q100	AEC-Q100
Regulator Topology	-	Buck
Supplied Contents	-	Board(s)
Supplier Device Package	SOT-23-6	SOT-23-6
Synchronous Rectifier	True	True
Topology	Buck	Buck
Utilized IC / Part	-	PLMR50410, LMR50410, LMR50410-Q1
Voltage - Input	-	4 V
Voltage - Input	-	36 V
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	4 V	4 V
Voltage - Output	-	3.3 - 5 V
Voltage - Output (Max)	-	28 V
Voltage - Output (Min/Fixed)	3.3 V	1 - 5 V

Part	Supplier Device Package	Voltage - Output (Min/Fixed)	Package / Case	Voltage - Output (Max)	Output Type	Voltage - Input (Max) [Max]	Current - Output	Number of Outputs	Grade	Topology	Frequency - Switching	Qualification	Mounting Type	Function	Output Configuration	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Board Type	Regulator Topology	Outputs and Type	Outputs and Type	Voltage - Output	Supplied Contents	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part
Texas Instruments LMR50410YQDBVRQ1	SOT-23-6	1 V	SOT-23-6	28 V	Adjustable	36 V	1 A	1	Automotive	Buck	2.1 MHz	AEC-Q100	Surface Mount	Step-Down	Positive	4 V	150 °C	-40 °C
Texas Instruments LMR50410XFDBVR	SOT-23-6	1 V	SOT-23-6	28 V	Adjustable	36 V	1 A	1		Buck	700 kHz		Surface Mount	Step-Down	Positive	4 V	150 °C	-40 °C
Texas Instruments LMR50410Y3FQDBVRQ1	SOT-23-6	3.3 V	SOT-23-6			36 V	1 A	1	Automotive	Buck	2.1 MHz	AEC-Q100	Surface Mount	Step-Down	Positive	4 V	150 °C	-40 °C	1.81 mOhm
Texas Instruments LMR50410EVM							1 A				700 kHz									Fully Populated	Buck	Non-Isolated	1	5 V	Board(s)	DC/DC, Step Down	4 V	36 V	LMR50410, PLMR50410
Texas Instruments LMR50410QEVM							1 A				2.1 MHz									Fully Populated	Buck	Non-Isolated	1	3.3 V	Board(s)	DC/DC, Step Down	4 V	36 V	LMR50410-Q1
Texas Instruments LMR50410Y5FQDBVRQ1	SOT-23-6	5 V	SOT-23-6			36 V	1 A	1	Automotive	Buck	2.1 MHz	AEC-Q100	Surface Mount	Step-Down	Positive	4 V	150 °C	-40 °C	1.81 mOhm
Texas Instruments LMR50410YFQDBVRQ1	SOT-23-6	1 V	SOT-23-6	28 V	Adjustable	36 V	1 A	1	Automotive	Buck	2.1 MHz	AEC-Q100	Surface Mount	Step-Down	Positive	4 V	150 °C	-40 °C
Texas Instruments LMR50410XDBVR	SOT-23-6	1 V	SOT-23-6	28 V	Adjustable	36 V	1 A	1		Buck	700 kHz		Surface Mount	Step-Down	Positive	4 V	150 °C	-40 °C
