MF-R800

Active

Bourns Inc.

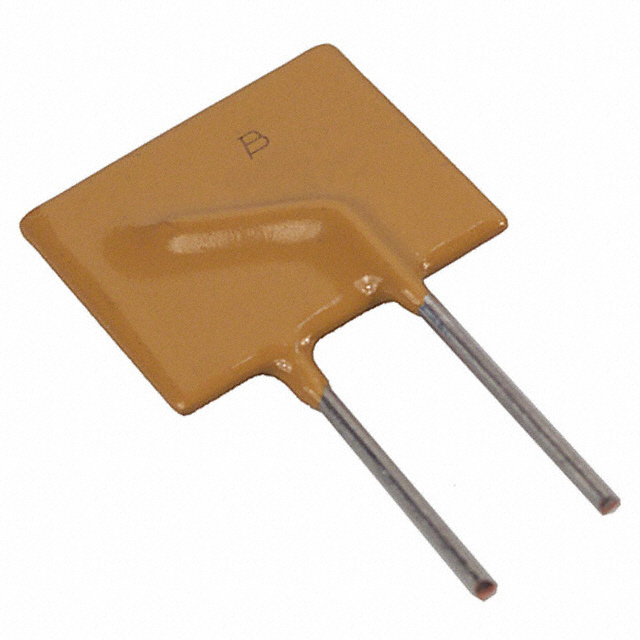

PTC RESET FUSE 30V 8A RADIAL

Search across all available documentation for this part.

Active

Bourns Inc.

PTC RESET FUSE 30V 8A RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	MF-R800

Approval Agency	cURus, TUV
Current - Hold (Ih) (Max) [Max]	8 A
Current - Max [Max]	40 A
Current - Trip (It)	16 A
Height - Seated (Max) [Max] [z]	1.295 in
Height - Seated (Max) [Max] [z]	32.9 mm
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	5 mOhms
Resistance - Post Trip (R1) (Max) [Max]	30 mOhms
Size / Dimension [x]	0.953 in
Size / Dimension [x]	24.2 mm
Size / Dimension [y]	0.118 in
Size / Dimension [y]	3 mm
Time to Trip	18.8 s
Type	Polymeric
Voltage - Max [Max]	30 V

Part	Time to Trip	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Trip (It)	Mounting Type	Type	Voltage - Max [Max]	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistance - Post Trip (R1) (Max) [Max]	Package / Case	Resistance - Initial (Ri) (Min) [Min]	Current - Hold (Ih) (Max) [Max]
Bourns Inc. MF-R800	18.8 s	cURus TUV	85 °C	-40 °C	1.295 in	32.9 mm	16 A	Through Hole	Polymeric	30 V	40 A	0.118 in	0.953 in	3 mm	24.2 mm	30 mOhms	Disc Radial	5 mOhms	8 A
Bourns Inc. MF-R800-2-99	18.8 s	cURus TUV	85 °C	-40 °C	1.295 in	32.9 mm	16 A	Through Hole	Polymeric	30 V	40 A	0.118 in	0.953 in	3 mm	24.2 mm	30 mOhms	Disc Radial	5 mOhms	8 A
Bourns Inc. MF-R800-0-003	18.8 s	cURus TUV	85 °C	-40 °C	1.295 in	32.9 mm	16 A	Through Hole	Polymeric	30 V	40 A	0.118 in	0.953 in	3 mm	24.2 mm	30 mOhms	Disc Radial	5 mOhms	8 A
Bourns Inc. MF-R800-0-99	18.8 s	cURus TUV	85 °C	-40 °C	1.295 in	32.9 mm	16 A	Through Hole	Polymeric	30 V	40 A	0.118 in	0.953 in	3 mm	24.2 mm	30 mOhms	Disc Radial	5 mOhms	8 A
Bourns Inc. MF-R800-AP	18.8 s	cURus TUV	85 °C	-40 °C	1.295 in	32.9 mm	16 A	Through Hole	Polymeric	30 V	40 A	0.118 in	0.953 in	3 mm	24.2 mm	30 mOhms	Disc Radial	5 mOhms	8 A
