624-009-361-531

Active

EDAC Inc.

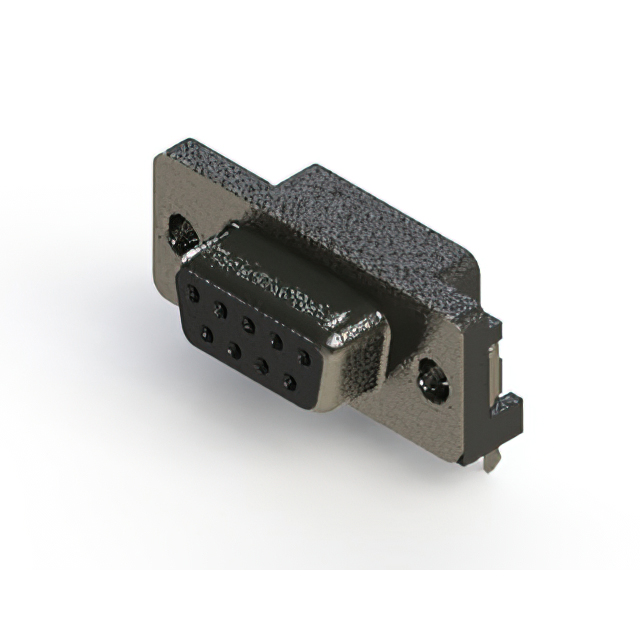

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

624-009-361-531

Active

EDAC Inc.

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Description Specifications Series Pricing CAD Documents

Description

General part information

624-009 Series

9 Position D-Sub Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	624-009-361-531

Backset Spacing	0.197 in
Color	Black
Connector Layout	DE, E
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Board Lock
Finish	Nickel Plated
Flange Feature	Shell (Unthreaded), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Positions	9
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	1
Termination	Solder

624-009 Series

Part	Mounting Type	Connector Style	Current Rating (Per Contact)	Number of Positions	Connector Type	Contact Finish	Termination	Features	Contact Type	Shell Size	Connector Layout	Number of Rows	Material Flammability Rating	Flange Feature	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Shell Material	Finish	Backset Spacing	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Color	Dielectric Material
EDAC Inc. 624-009-261-035	Board Edge Right Angle Through Hole	D-Sub	3 A	9	Female Sockets Receptacle	Gold	Solder	Board Lock Shielded	Signal	1	DE E	2	UL94 V-0	Housing Shell (M3)	0	Flash	Flash	Steel	Nickel Plated	0.197 in	Copper Alloy	-55 °C	85 °C	Black	Polyester Thermoplastic
EDAC Inc. 624-009-361-532	Board Edge Right Angle Through Hole	D-Sub	3 A	9	Female Sockets Receptacle	Gold	Solder	Board Lock Shielded	Signal	1	DE E	2	UL94 V-0	Housing Shell (4-40)	15 µin			Steel	Nickel Plated	0.197 in	Copper Alloy	-55 °C	125 °C	Black	Polyester Thermoplastic
EDAC Inc. 624-009-361-032	Board Edge Right Angle Through Hole	D-Sub	3 A	9	Female Sockets Receptacle	Gold	Solder	Board Lock Shielded	Signal	1	DE E	2	UL94 V-0	Housing Shell (4-40)	15 µin			Steel	Nickel Plated	0.197 in	Copper Alloy	-55 °C	85 °C	Black	Polyester Thermoplastic
EDAC Inc. 624-009-261-533	Board Edge Right Angle Through Hole	D-Sub	3 A	9	Female Sockets Receptacle	Gold	Solder	Board Lock Shielded	Signal	1	DE E	2	UL94 V-0	Female Screwlock (4-40) Mating Side	0	Flash	Flash	Steel	Nickel Plated	0.197 in	Copper Alloy	-55 °C	125 °C	Black	Polyester Thermoplastic
EDAC Inc. 624-009-661-535	Board Edge Right Angle Through Hole	D-Sub	3 A	9	Female Sockets Receptacle	Gold	Solder	Board Lock Shielded	Signal	1	DE E	2	UL94 V-0	Housing Shell (M3)	30 µin			Steel	Nickel Plated	0.197 in	Copper Alloy	-55 °C	125 °C	Black	Polyester Thermoplastic
EDAC Inc. 624-009-261-031	Board Edge Right Angle Through Hole	D-Sub	3 A	9	Female Sockets Receptacle	Gold	Solder	Board Lock Shielded	Signal	1	DE E	2	UL94 V-0	Housing Shell (Unthreaded)	0	Flash	Flash	Steel	Nickel Plated	0.197 in	Copper Alloy	-55 °C	85 °C	Black	Polyester Thermoplastic
EDAC Inc. 624-009-361-533	Board Edge Right Angle Through Hole	D-Sub	3 A	9	Female Sockets Receptacle	Gold	Solder	Board Lock Shielded	Signal	1	DE E	2	UL94 V-0	Female Screwlock (4-40) Mating Side	15 µin			Steel	Nickel Plated	0.197 in	Copper Alloy	-55 °C	125 °C	Black	Polyester Thermoplastic
EDAC Inc. 624-009-361-531	Board Edge Right Angle Through Hole	D-Sub	3 A	9	Female Sockets Receptacle	Gold	Solder	Board Lock Shielded	Signal	1	DE E	2	UL94 V-0	Housing Shell (Unthreaded)	15 µin			Steel	Nickel Plated	0.197 in	Copper Alloy	-55 °C	125 °C	Black	Polyester Thermoplastic
EDAC Inc. 624-009-661-031	Board Edge Right Angle Through Hole	D-Sub	3 A	9	Female Sockets Receptacle	Gold	Solder	Board Lock Shielded	Signal	1	DE E	2	UL94 V-0	Housing Shell (Unthreaded)	30 µin			Steel	Nickel Plated	0.197 in	Copper Alloy	-55 °C	85 °C	Black	Polyester Thermoplastic
EDAC Inc. 624-009-261-032	Board Edge Right Angle Through Hole	D-Sub	3 A	9	Female Sockets Receptacle	Gold	Solder	Board Lock Shielded	Signal	1	DE E	2	UL94 V-0	Housing Shell (4-40)	0	Flash	Flash	Steel	Nickel Plated	0.197 in	Copper Alloy	-55 °C	85 °C	Black	Polyester Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

624-009-361-531 | Datasheet
