Q-2O00X000D2.5M

Active

Amphenol Custom Cable

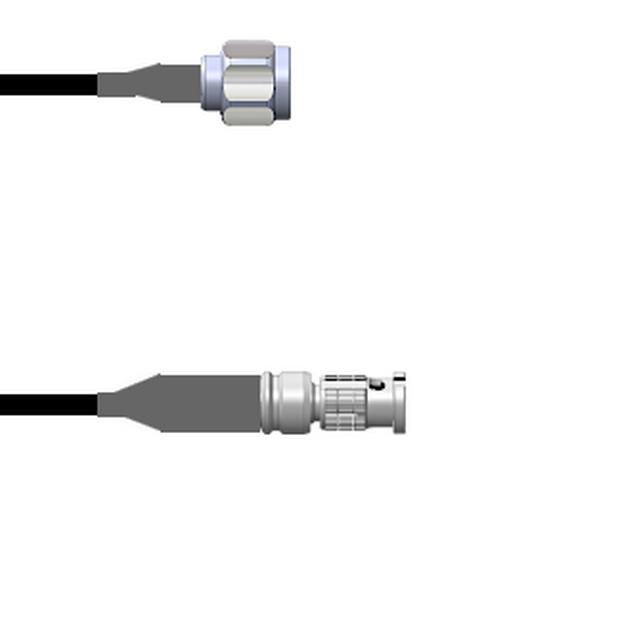

CBL ASSY HDBNC-NTYPE PLG-PL 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2O00X000D2.5M

Active

Amphenol Custom Cable

CBL ASSY HDBNC-NTYPE PLG-PL 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2O00X000D2.5M

1st Connector	HD-BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	LMR 195
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	HD-BNC to N-Type

Q-2O00X0 Series

Part	Frequency - Max [Max]	2nd Connector	1st Connector Mounting Type	Length	Length	Style	Color	Features	1st Connector	2nd Connector Mounting Type	2nd Contact Gender	Cable Type	1st Contact Gender	Overall Impedance	Length
Amphenol Custom Cable Q-2O00X000D009i	6000 MHz	N-Type Plug	Free Hanging (In-Line)	9 "	228.6 mm	HD-BNC to N-Type	Black	Shielded	HD-BNC Plug	Free Hanging (In-Line)	Male	LMR 195	Male	50 Ohms
Amphenol Custom Cable Q-2O00X000D2.5M	6000 MHz	N-Type Plug	Free Hanging (In-Line)	98.4 in	2.5 m	HD-BNC to N-Type	Black	Shielded	HD-BNC Plug	Free Hanging (In-Line)	Male	LMR 195	Male	50 Ohms	8.2 '
Amphenol Custom Cable Q-2O00X000D012i	6000 MHz	N-Type Plug	Free Hanging (In-Line)	12 "	304.8 mm	HD-BNC to N-Type	Black	Shielded	HD-BNC Plug	Free Hanging (In-Line)	Male	LMR 195	Male	50 Ohms
Amphenol Custom Cable Q-2O00X000D024i	6000 MHz	N-Type Plug	Free Hanging (In-Line)	24 "	609.6 mm	HD-BNC to N-Type	Black	Shielded	HD-BNC Plug	Free Hanging (In-Line)	Male	LMR 195	Male	50 Ohms
Amphenol Custom Cable Q-2O00X000D060i	6000 MHz	N-Type Plug	Free Hanging (In-Line)	5 '	1.5 m	HD-BNC to N-Type	Black	Shielded	HD-BNC Plug	Free Hanging (In-Line)	Male	LMR 195	Male	50 Ohms	5 ft
Amphenol Custom Cable Q-2O00X000D.75M	6000 MHz	N-Type Plug	Free Hanging (In-Line)	29.53 "	750 mm	HD-BNC to N-Type	Black	Shielded	HD-BNC Plug	Free Hanging (In-Line)	Male	LMR 195	Male	50 Ohms
Amphenol Custom Cable Q-2O00X000D006i	6000 MHz	N-Type Plug	Free Hanging (In-Line)	6 in	152.4 mm	HD-BNC to N-Type	Black	Shielded	HD-BNC Plug	Free Hanging (In-Line)	Male	LMR 195	Male	50 Ohms
Amphenol Custom Cable Q-2O00X000D001M	6000 MHz	N-Type Plug	Free Hanging (In-Line)	39.4 in	1 m	HD-BNC to N-Type	Black	Shielded	HD-BNC Plug	Free Hanging (In-Line)	Male	LMR 195	Male	50 Ohms	3.3 ft
Amphenol Custom Cable Q-2O00X000D048i	6000 MHz	N-Type Plug	Free Hanging (In-Line)	48 in	1200 mm	HD-BNC to N-Type	Black	Shielded	HD-BNC Plug	Free Hanging (In-Line)	Male	LMR 195	Male	50 Ohms	4 ft
Amphenol Custom Cable Q-2O00X000D0.5M	6000 MHz	N-Type Plug	Free Hanging (In-Line)	19.69 "	50 cm	HD-BNC to N-Type	Black	Shielded	HD-BNC Plug	Free Hanging (In-Line)	Male	LMR 195	Male	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 92.68
		25	$ 86.32
		50	$ 79.95
		100	$ 74.50
		250	$ 69.95

Description

General part information

Q-2O00X0 Series

Cable Assembly Coaxial HD-BNC to N-Type LMR 195 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
