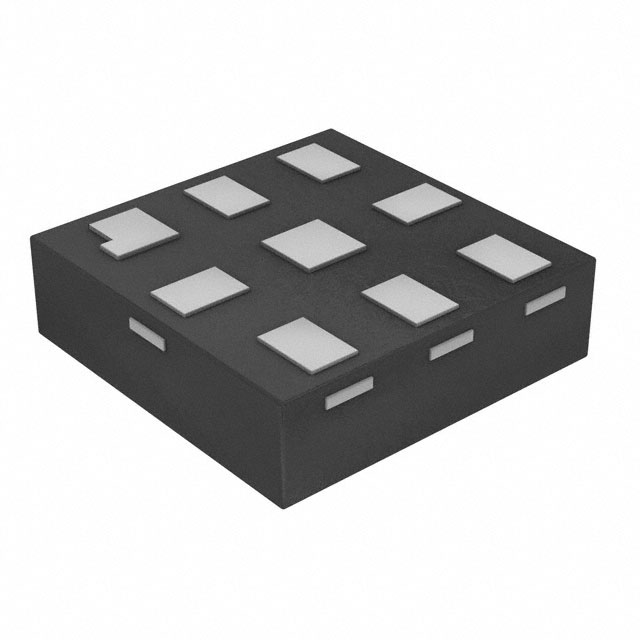

TC75W70L8X,LF

Obsolete

Toshiba Semiconductor and Storage

IC COMPARATOR 2 GEN PUR SOT902

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

IC COMPARATOR 2 GEN PUR SOT902

Technical Specifications

Parameters and characteristics for this part

Specification	TC75W70L8X,LF

Current - Input Bias (Max)	1 pA
Current - Output (Typ)	18 mA
Current - Quiescent (Max) [Max]	47 µA
Mounting Type	Surface Mount
Number of Elements	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Push-Pull
Package / Case	8-UFQFN Exposed Pad
Propagation Delay (Max) [Max]	800 ns
Supplier Device Package	SOT-902
Type	General Purpose
Voltage - Input Offset (Max)	6 mV
Voltage - Supply, Single/Dual (±) [Max]	5.5 V
Voltage - Supply, Single/Dual (±) [Min]	1.3 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Typ)	Voltage - Input Offset (Max)	Package / Case	Type	Current - Quiescent (Max) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Mounting Type	Supplier Device Package	Number of Elements	Current - Input Bias (Max)	Output Type	Propagation Delay (Max) [Max]
Toshiba Semiconductor and Storage TC75W70L8X,LF	85 °C	-40 °C	18 mA	6 mV	8-UFQFN Exposed Pad	General Purpose	47 µA	1.3 V	5.5 V	Surface Mount	SOT-902	2	1 pA	Push-Pull	800 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Comparator General Purpose Push-Pull SOT-902
