102161-8
ActiveTE Connectivity AMP Connectors

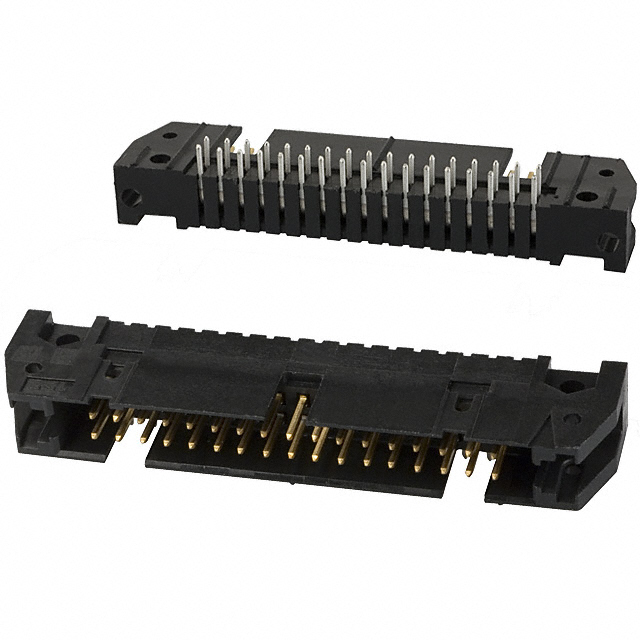

CONN HEADER R/A 34POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
102161-8
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 34POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 102161-8 | 102161 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 6.1 mm | 6.1 mm |
| Contact Length - Mating [x] | 0.24 in | 0.24 in |
| Contact Length - Post | 3.94 mm | 3.94 mm |
| Contact Length - Post | 0.155 " | 0.155 " |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1 A | 1 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.315 in | 0.315 in |
| Insulation Height | 8 mm | 8 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 34 | 14 - 34 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 400 | $ 5.71 | |
102161 Series
CONN HEADER R/A 30POS 2.54MM
| Part | Current Rating (Amps) | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Length - Mating | Contact Length - Mating [x] | Shrouding | Pitch - Mating | Pitch - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Mounting Type | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Connector Type | Contact Shape | Insulation Color | Number of Rows | Material Flammability Rating | Contact Type | Voltage Rating | Termination | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 102161-7 | 1 A | Brass | -65 ░C | 105 ░C | 30 | 6.1 mm | 0.24 in | Shrouded - 4 Wall | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Through Hole, Right Angle | 0.315 in | 8 mm | 3.94 mm | 0.155 " | Header | Square | Black | 2 | UL94 V-0 | Male Pin | 250 VAC | Solder | Push-Pull | 15 µin | 0.38 µm | All | Tin-Lead | 2.54 µm | 100 µin | Gold or Gold-Palladium | Board to Cable/Wire |
TE Connectivity AMP Connectors 102161-2 | 1 A | Brass | -65 ░C | 105 ░C | 14 | 6.1 mm | 0.24 in | Shrouded - 4 Wall | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Through Hole, Right Angle | 0.315 in | 8 mm | 3.94 mm | 0.155 " | Header | Square | Black | 2 | UL94 V-0 | Male Pin | 250 VAC | Solder | Push-Pull | 15 µin | 0.38 µm | All | Tin-Lead | 2.54 µm | 100 µin | Gold or Gold-Palladium | Board to Cable/Wire |
TE Connectivity AMP Connectors 102161-8 | 1 A | Brass | -65 ░C | 105 ░C | 34 | 6.1 mm | 0.24 in | Shrouded - 4 Wall | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Through Hole, Right Angle | 0.315 in | 8 mm | 3.94 mm | 0.155 " | Header | Square | Black | 2 | UL94 V-0 | Male Pin | 250 VAC | Solder | Push-Pull | 15 µin | 0.38 µm | All | Tin-Lead | 2.54 µm | 100 µin | Gold or Gold-Palladium | Board to Cable/Wire |
TE Connectivity AMP Connectors 102161-4 | 1 A | Brass | -65 ░C | 105 ░C | 20 | 6.1 mm | 0.24 in | Shrouded - 4 Wall | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Through Hole, Right Angle | 0.315 in | 8 mm | 3.94 mm | 0.155 " | Header | Square | Black | 2 | UL94 V-0 | Male Pin | 250 VAC | Solder | Push-Pull | 15 µin | 0.38 µm | All | Tin-Lead | 2.54 µm | 100 µin | Gold or Gold-Palladium | Board to Cable/Wire |
Description
General part information
102161 Series
Connector Header Through Hole, Right Angle 34 position 0.100" (2.54mm)
