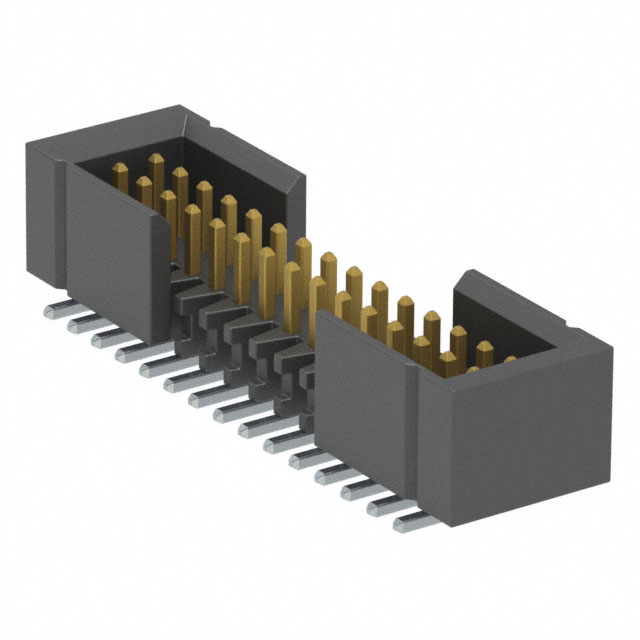

FTMH-115-03-F-DV-ES
ActiveSamtec Inc.
CONN HEADER SMD 30POS 1MM
Deep-Dive with AI
Search across all available documentation for this part.
FTMH-115-03-F-DV-ES
ActiveSamtec Inc.
CONN HEADER SMD 30POS 1MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FTMH-115-03-F-DV-ES |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Length - Mating | 0.065 in |
| Contact Length - Mating | 1.65 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.8 A per Contact |
| Fastening Type | Push-Pull |
| Features | End Shrouds |
| Insulation Color | Black |
| Insulation Height | 1.5 mm |
| Insulation Height | 0.059 " |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.039 in |
| Pitch - Mating | 1 mm |
| Row Spacing - Mating | 0.039 " |
| Row Spacing - Mating | 1 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
FTMH-115 Series
| Part | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Contact Shape | Termination | Contact Material | Contact Length - Mating | Contact Length - Mating | Number of Rows | Contact Finish - Mating | Number of Positions Loaded | Connector Type | Number of Positions | Material Flammability Rating | Insulation Material | Fastening Type | Contact Finish - Post | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Row Spacing - Mating | Row Spacing - Mating | Insulation Height | Insulation Height | Current Rating (Amps) | Shrouding | Features | Mounting Type | Contact Length - Mating [x] | Contact Length - Mating [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Black | -55 °C | 125 °C | 0.039 in | 1 mm | Square | Solder | Phosphor Bronze | 0.065 in | 1.65 mm | 2 | Gold | All | Header | 30 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Push-Pull | Tin | Male Pin | 3 µin | 0.076 µm | 0.039 " | 1 mm | 1.5 mm | 0.059 " | 2.8 A per Contact | Unshrouded | End Shrouds Pick and Place | Surface Mount | ||||
Samtec Inc. | Black | -55 °C | 125 °C | 0.039 in | 1 mm | Square | Solder | Phosphor Bronze | 0.065 in | 1.65 mm | 2 | Gold | All | Header | 30 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Push-Pull | Tin | Male Pin | 3 µin | 0.076 µm | 0.039 " | 1 mm | 1.5 mm | 0.059 " | 2.8 A per Contact | Unshrouded | Surface Mount | |||||
Samtec Inc. | Black | -55 °C | 125 °C | 0.039 in | 1 mm | Square | Solder | Phosphor Bronze | 2 | Gold | All | Header | 30 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Push-Pull | Tin | Male Pin | 10 çin | 0.25 çm | 0.039 " | 1 mm | 1.5 mm | 0.059 " | 2.8 A per Contact | Unshrouded | Surface Mount | 1.9 mm | 0.075 in | |||||
Samtec Inc. | Black | -55 °C | 125 °C | 0.039 in | 1 mm | Square | Solder | Phosphor Bronze | 0.065 in | 1.65 mm | 2 | Gold | All | Header | 30 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Push-Pull | Tin | Male Pin | 3 µin | 0.076 µm | 0.039 " | 1 mm | 1.5 mm | 0.059 " | 2.8 A per Contact | Unshrouded | Surface Mount | |||||
Samtec Inc. | Black | -55 °C | 125 °C | 0.039 in | 1 mm | Square | Solder | Phosphor Bronze | 2 | Gold | All | Header | 30 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Push-Pull | Tin | Male Pin | 3 µin | 0.076 µm | 0.039 " | 1 mm | 1.5 mm | 0.059 " | 2.8 A per Contact | Unshrouded | Board Guide Pick and Place | Surface Mount | 1.9 mm | 0.075 in | ||||
Samtec Inc. | Black | -55 °C | 125 °C | 0.039 in | 1 mm | Square | Solder | Phosphor Bronze | 0.065 in | 1.65 mm | 2 | Gold | All | Header | 30 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Push-Pull | Tin | Male Pin | 3 µin | 0.076 µm | 0.039 " | 1 mm | 3.18 mm | 0.125 in | 2.8 A per Contact | Unshrouded | Surface Mount Right Angle | |||||
Samtec Inc. | Black | -55 °C | 125 °C | 0.039 in | 1 mm | Square | Solder | Phosphor Bronze | 0.065 in | 1.65 mm | 2 | Gold | All | Header | 30 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Push-Pull | Tin | Male Pin | 3 µin | 0.076 µm | 0.039 " | 1 mm | 1.5 mm | 0.059 " | 2.8 A per Contact | Unshrouded | End Shrouds | Surface Mount | ||||
Samtec Inc. | Black | -55 °C | 125 °C | 0.039 in | 1 mm | Square | Solder | Phosphor Bronze | 0.065 in | 1.65 mm | 2 | Gold | All | Header | 30 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Push-Pull | Tin | Male Pin | 3 µin | 0.076 µm | 0.039 " | 1 mm | 1.5 mm | 0.059 " | 2.8 A per Contact | Unshrouded | End Shrouds | Surface Mount | ||||
Samtec Inc. | Black | -55 °C | 125 °C | 0.039 in | 1 mm | Square | Solder | Phosphor Bronze | 2 | Gold | All | Header | 30 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Push-Pull | Gold | Male Pin | 10 çin | 0.25 çm | 0.039 " | 1 mm | 1.5 mm | 0.059 " | 2.8 A per Contact | Unshrouded | Pick and Place | Surface Mount | 1.9 mm | 0.075 in | 3 µin | 0.076 µm | ||
Samtec Inc. | Black | -55 °C | 125 °C | 0.039 in | 1 mm | Square | Solder | Phosphor Bronze | 2 | Gold | All | Header | 30 | UL94 V-0 | Liquid Crystal Polymer (LCP) | Push-Pull | Tin | Male Pin | 3 µin | 0.076 µm | 0.039 " | 1 mm | 1.5 mm | 0.059 " | 2.8 A per Contact | Unshrouded | Board Guide End Shrouds | Surface Mount | 1.9 mm | 0.075 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 34 | $ 5.68 | |
Description
General part information
FTMH-115 Series
Connector Header Surface Mount 30 position 0.039" (1.00mm)
