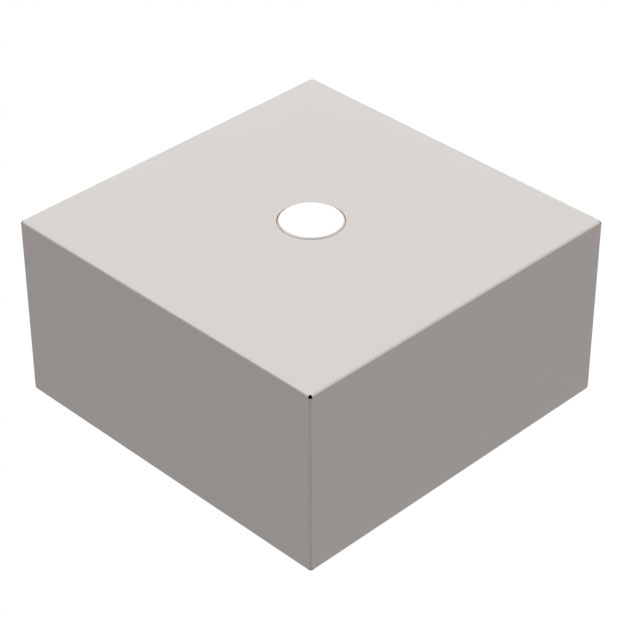

MGV-125-23

Active

MACOM Technology Solutions

VARACTOR DIODE,GAAS,HYPERABRUPT,

Search across all available documentation for this part.

Active

MACOM Technology Solutions

VARACTOR DIODE,GAAS,HYPERABRUPT,

Technical Specifications

Parameters and characteristics for this part

Specification	MGV-125-23

Capacitance @ Vr, F	1.32 pF
Capacitance Ratio	10
Capacitance Ratio Condition	C2/C20
Diode Type	Single
Mounting Type	Surface Mount
Package / Case	Die
Q @ Vr, F	3000
Supplier Device Package	Chip
Voltage - Peak Reverse (Max) [Max]	22 V

Part	Voltage - Peak Reverse (Max) [Max]	Supplier Device Package	Package / Case	Q @ Vr, F	Capacitance Ratio Condition	Diode Type	Mounting Type	Capacitance Ratio	Capacitance @ Vr, F
MACOM Technology Solutions MGV-125-21	22 V	Chip	Die	4000	C2/C20	Single	Surface Mount	10
MACOM Technology Solutions MGV-125-23	22 V	Chip	Die	3000	C2/C20	Single	Surface Mount	10	1.32 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Varactors Single 22 V Surface Mount Chip
