Specification	321522

Color	Red
Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination
Insulation	Insulated
Insulation Diameter (Max)	0.125 in
Insulation Diameter (Min)	0.08 in
Length - Overall	1.171 in
Material - Insulation	Polyamide, PA, Nylon
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	0.375 in
Stud/Tab Size	3 Stud, 8 Stud
Terminal Type	Oval
Termination	Crimp
Thickness	0.031 in
Width - Outer Edges	0.656 in
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	16 AWG

3215 Series

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Mounting Type	Terminal Type	Contact Finish	Stud/Tab Size	Length - Overall	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Features	Termination	Contact Material	Thickness	Insulation	Width - Outer Edges	Wire Gauge	Color	Material - Insulation	Stud/Tab Size	Number of Wire Entries	Stud/Tab Size (Type)	Diameter - Ring ID	Diameter - Barrel OD	Diameter - Barrel ID	Tab Thickness	Terminal Style
TE Connectivity AMP Connectors 321501	0.15 in	0.23 in	Free Hanging (In-Line)	Circular	Tin	6 Stud	0.896 in	12 AWG	10 AWG	Serrated Termination	Crimp	Copper	0.04 in	Non-Insulated	0.281 in
TE Connectivity AMP Connectors 321598			Free Hanging (In-Line)	Circular	Tin	0.25 Stud	1.168 in			Brazed Seam Serrated Termination	Crimp	Copper	0.057 in	Non-Insulated	0.468 in	6 AWG
TE Connectivity AMP Connectors 321518	0.15 in	0.25 in	Free Hanging (In-Line)	Circular	Tin	10 Stud	1.046 in	16 AWG	14 AWG	Heavy Duty Serrated Termination	Crimp	Copper	0.048 in	Insulated	0.343 in		Black Stripe Yellow	Poly-Vinyl Chloride PVC
TE Connectivity AMP Connectors 321522	0.08 in	0.125 in	Free Hanging (In-Line)	Oval	Tin	0.375 in	1.171 in	22 AWG	16 AWG	Serrated Termination	Crimp	Copper	0.031 in	Insulated	0.656 in		Red	Nylon PA Polyamide	3 Stud 8 Stud
TE Connectivity AMP Connectors 321519				Butt Splice Closed End Single Opening				22 AWG	10 AWG		Crimp			Fully Insulated			Purple			1
TE Connectivity AMP Connectors 321576			Free Hanging (In-Line) Right Angle	Circular	Tin	0.25 Stud	0.96 in			Brazed Seam Serrated Termination	Crimb Flag	Copper	0.045 in	Non-Insulated	0.5 in	6 AWG
TE Connectivity AMP Connectors 321598			Free Hanging (In-Line)	Circular	Tin	0.25 Stud	1.168 in			Brazed Seam Serrated Termination	Crimp	Copper	0.057 in	Non-Insulated	0.468 in	6 AWG

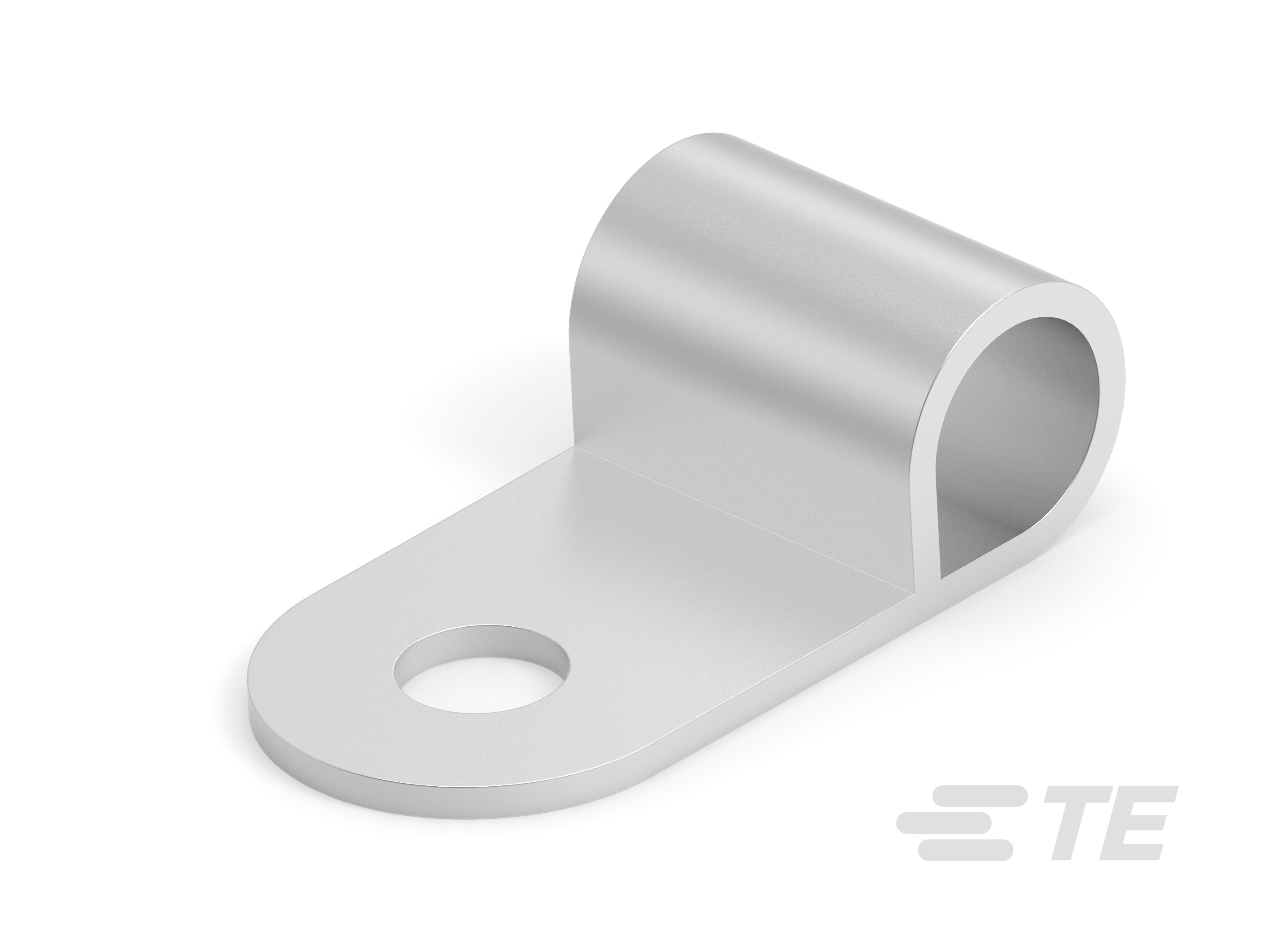

TE Connectivity AMP Connectors 321580			Free Hanging (In-Line) Right Angle	Circular	Tin	0.3125 in	1.733 in			Brazed Seam Serrated Termination	Crimb Flag	Copper	0.07 in	Non-Insulated	0.875 in	1/0 AWG			16 Stud 5 Stud		Stud

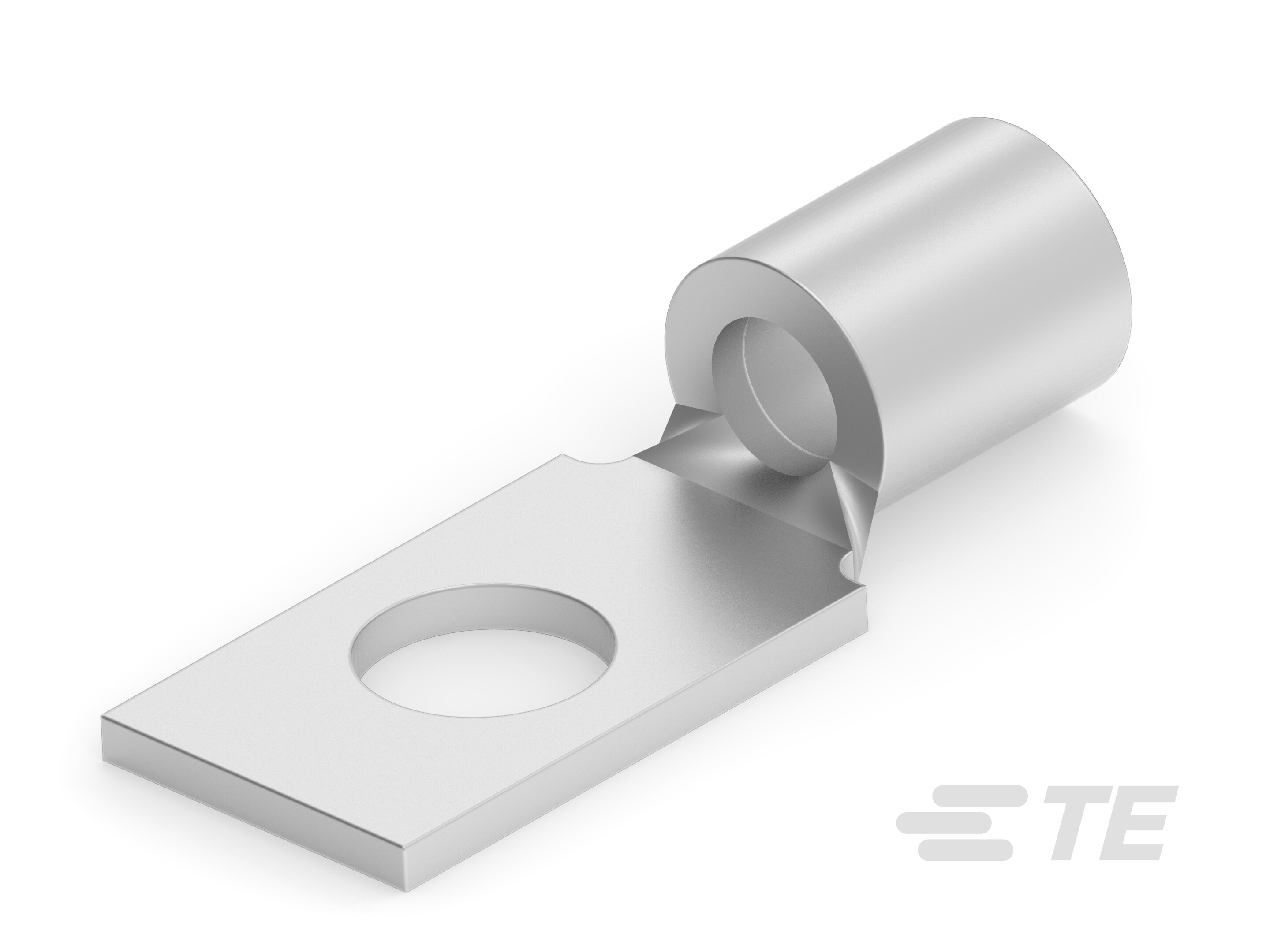

TE Connectivity AMP Connectors 321558			Free Hanging (In-Line)	Rectangular Tongue	Tin	10 Stud	0.843 in	12 AWG	10 AWG	Brazed Seam Serrated Termination	Crimp	Copper		Non-Insulated	0.312 in							0.197 in	0.226 in	0.129 in	0.039 in	Single Stud Hole
