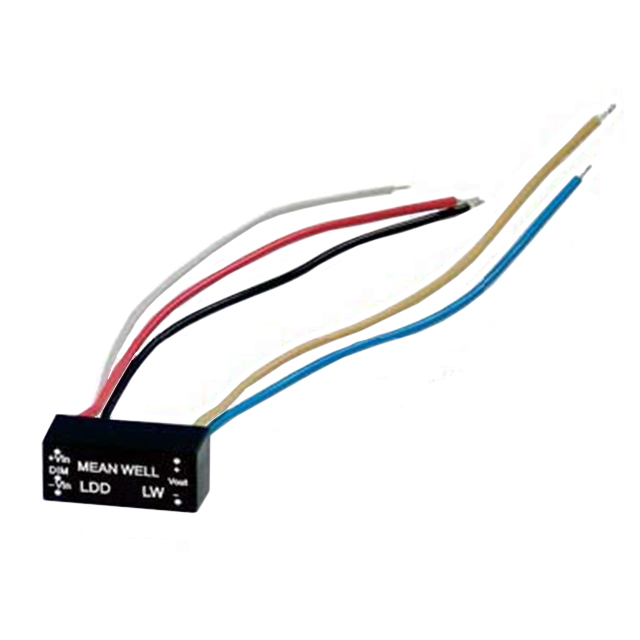

LDD-300LW

MEAN WELL USA Inc.

LED DRIVER CC BUCK 2-30V 300MA

Search across all available documentation for this part.

MEAN WELL USA Inc.

LED DRIVER CC BUCK 2-30V 300MA

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Efficiency	Voltage - Output [Max]	Voltage - Output [Min]	Dimming	Voltage - Input (Min) [Min]	Mounting Type	Topology	Current - Output (Max) [Max]	Approval Agency	Voltage - Input (Max) [Max]	Number of Outputs	Ratings	Termination Style
MEAN WELL USA Inc. LDD-300H	20.3 mm	1.25 "	31.8 mm	0.8 in	0.48 in	12.2 mm	Constant Current	OTP Remote On/Off SCP	85 °C	-40 °C	9 PC Pad	24-DIP Module	97 %	52 V	2 V	PWM	9 V	Through Hole	Buck	300 mA	CE	56 V	1
MEAN WELL USA Inc. LDD-300LW	9.9 mm	0.89 in	22.6 mm	0.39 "	0.35 "	8.9 mm	Constant Current	OTP Remote On/Off SCP	85 °C	-40 °C			95 %	30 VDC	2 V	PWM	9 V	Chassis Mount	Buck	300 mA	CE	36 V	1	IP67	Wire Leads
MEAN WELL USA Inc. LDD-300L	9.9 mm	0.89 in	22.6 mm	0.39 "	0.35 "	8.9 mm	Constant Current	OTP Remote On/Off SCP	85 °C	-40 °C	5 Leads	6-DIP Module	95 %	32 VDC	2 V	PWM	9 V	Through Hole	Buck	300 mA	CE	36 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

300mA 2 ~ 30V Constant Current LED Driver Buck Topology 1 Output
