TB9053FTG(EL)
ActiveToshiba Semiconductor and Storage
H-BRIDGE MTR DRV 2CH 5A/1CH 10A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TB9053FTG(EL)
ActiveToshiba Semiconductor and Storage
H-BRIDGE MTR DRV 2CH 5A/1CH 10A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TB9053FTG(EL) |
|---|---|
| Current - Output | 6 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Grade | Automotive |
| Interface | SPI, PWM |
| Motor Type - AC, DC | Brushed DC |
| Motor Type - Stepper | Bipolar |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (4) |

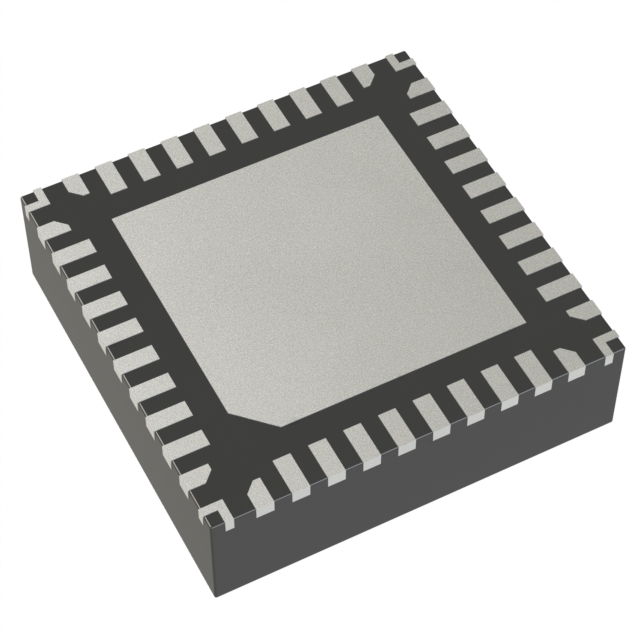

| Package / Case | 40-LFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (6x6) |
| Technology | DMOS |
| Voltage - Load [Max] | 28 V |
| Voltage - Load [Min] | 4.5 V |
| Voltage - Supply [Max] | 28 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.12 | |
| 10 | $ 4.03 | |||
| 25 | $ 3.48 | |||
| 100 | $ 2.86 | |||
| 250 | $ 2.56 | |||
| 500 | $ 2.37 | |||
| 1000 | $ 2.30 | |||
| Digi-Reel® | 1 | $ 6.12 | ||
| 10 | $ 4.03 | |||
| 25 | $ 3.48 | |||
| 100 | $ 2.86 | |||
| 250 | $ 2.56 | |||
| 500 | $ 2.37 | |||
| 1000 | $ 2.30 | |||
| Tape & Reel (TR) | 3000 | $ 2.30 | ||
Description
General part information
TB9053 Series
Bipolar Motor Driver DMOS PWM, SPI 40-QFN (6x6)
