8133 0601000

Active

Belden Inc.

MULTI-PAIR 6COND 28AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6COND 28AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8133 0601000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.73 mm
Jacket (Insulation) Diameter [diameter]	0.265 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2919
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	28 AWG

Part	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Wire Gauge	Cable Type	Ratings	Shield Type	Shield Coverage	Features	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Number of Conductors	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Jacket (Insulation) Material
Belden Inc. 8133 0601000	Aluminum Copper Tinned	-30 ░C	80 C	0.889 mm	0.035 in	1000 ft	304.8 m	28 AWG	Multi-Pair	UL Style 2919	Braid Foil	65 % 100 %	Drain Wire	Copper Tinned	6.73 mm	0.265 in	Chrome	6	Foam Polyethylene (FPE)	36 AWG	7	Computer	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.61

General part information

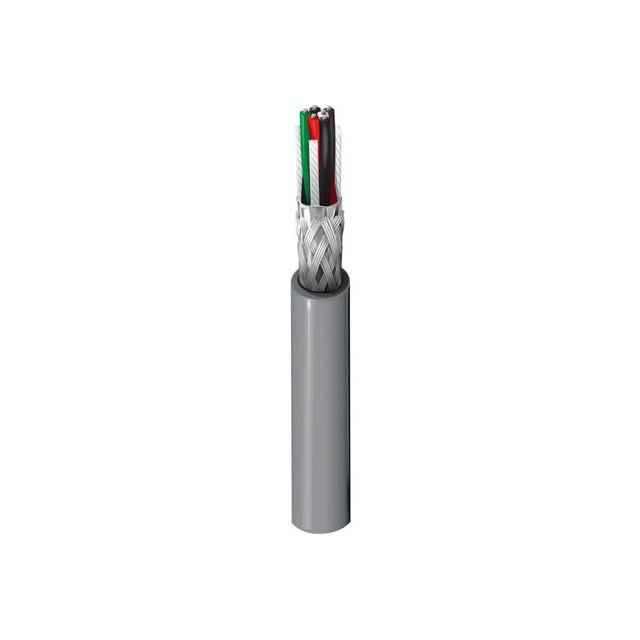

6 (3 Pair Twisted) Conductor Multi-Pair Cable Chrome 28 AWG Foil, Braid 1000.0' (304.8m)
