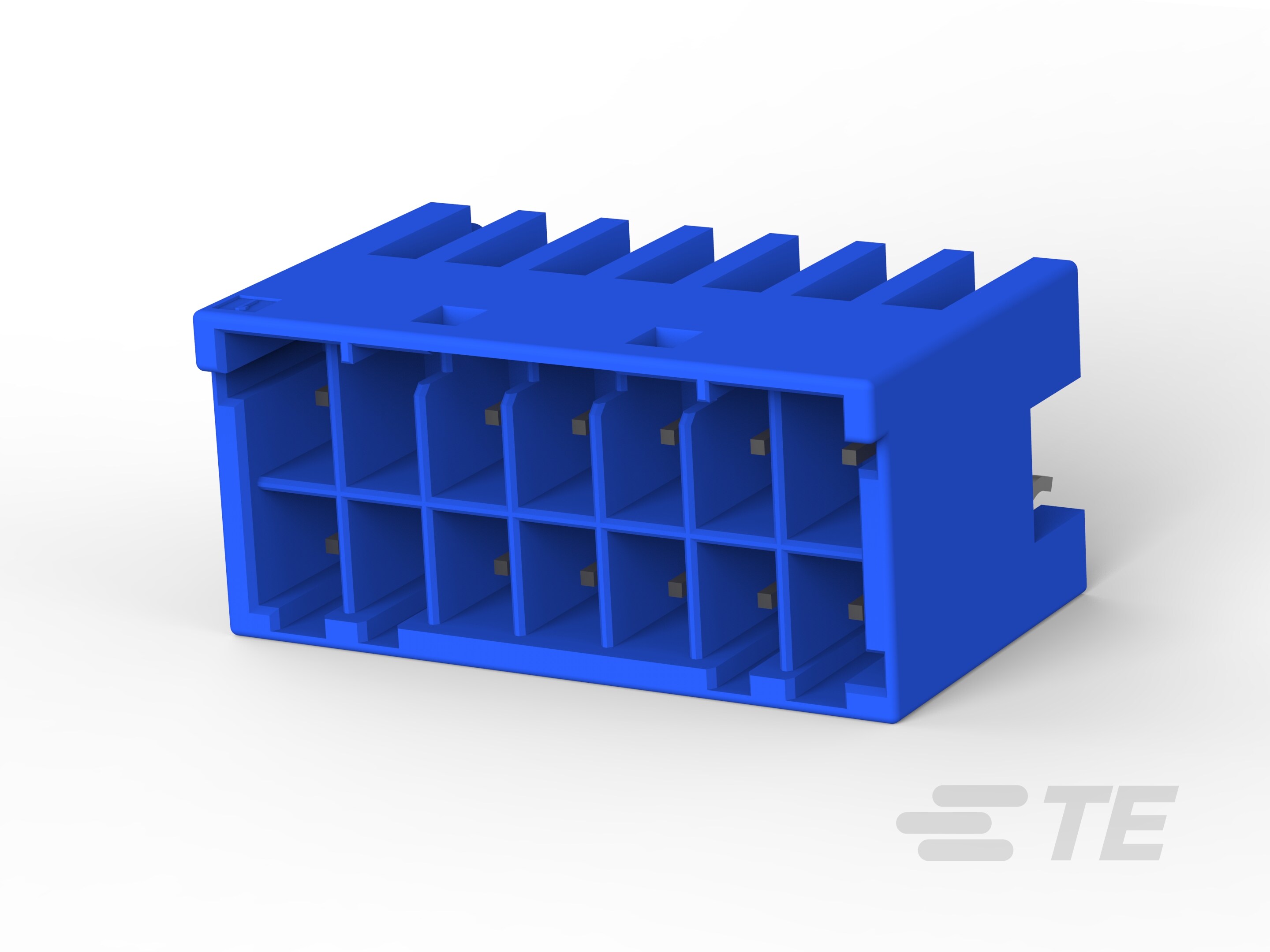

Specification	6-1971906-7

Applications	General Purpose, Industrial
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Post	0.118 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Blue
Insulation Height	0.561 in
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Overall Contact Length	0.575 in
Pitch - Mating	0.13 in
Row Spacing - Mating	0.205 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Kinked Pin, Solder
Voltage Rating	250 V

GRACE INERTIA 3.3 Series

Part	Number of Rows	Contact Length - Post	Material Flammability Rating	Insulation Height	Contact Finish - Post	Contact Shape	Number of Positions Loaded	Contact Finish - Mating	Termination	Style	Mounting Type	Fastening Type	Voltage Rating	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)	Connector Type	Shrouding	Contact Material	Insulation Material	Insulation Color	Overall Contact Length	Features	Row Spacing - Mating	Number of Positions	Current Rating	Current Rating	Pitch - Mating	Row Spacing	Pitch	Color	Contact Termination	Applications	Pin or Socket	Contact Finish	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)
TE Connectivity AMP Connectors 2-1971906-5	2	0.118 in	UL94 V-0	0.561 in	Tin	Square	All	Tin	Kinked Pin Solder	Board Cable/Wire	Through Hole	Latch Holder	250 V	Male Pin	-30 °C	105 °C	Header	Shrouded - 4 Wall	Brass	Glass Filled Nylon 6/6 Polyamide (PA66)	Blue	0.575 in	Board Guide	0.205 in	10	0 A	Varies by Wire Gauge	0.13 in
TE Connectivity AMP Connectors 2-1971905-2	2										Free Hanging (In-Line)	Latch Lock		Female Socket	-30 °C	105 °C	Plug			Glass Filled Nylon 6/6 Polyamide (PA66)					4				0.205 in	0.13 in	Blue	Crimp
TE Connectivity AMP Connectors 1-1971906-3	2	0.118 in	UL94 V-0	0.561 in	Tin	Square	All	Tin	Kinked Pin Solder	Board Cable/Wire	Through Hole	Latch Holder	250 V	Male Pin	-30 °C	105 °C	Header	Shrouded - 4 Wall	Brass	Glass Filled Nylon 6/6 Polyamide (PA66)	Natural	0.575 in	Board Guide	0.205 in	6	0 A	Varies by Wire Gauge	0.13 in
TE Connectivity AMP Connectors 1-1971905-7	2										Free Hanging (In-Line)	Latch Lock		Female Socket	-30 °C	105 °C	Plug			Glass Filled Nylon 6/6 Polyamide (PA66)					14				0.205 in	0.13 in	Natural	Crimp
TE Connectivity AMP Connectors 2-1971906-7	2	0.118 in	UL94 V-0	0.561 in	Tin	Square	All	Tin	Kinked Pin Solder	Board Cable/Wire	Through Hole	Latch Holder	250 V	Male Pin	-30 °C	105 °C	Header	Shrouded - 4 Wall	Brass	Glass Filled Nylon 6/6 Polyamide (PA66)	Blue	0.575 in		0.205 in	14	4 A		0.13 in
TE Connectivity AMP Connectors 3-1971905-2	2										Free Hanging (In-Line)	Latch Lock		Female Socket	-30 °C	105 °C	Plug			Glass Filled Nylon 6/6 Polyamide (PA66)					4				0.205 in	0.13 in	Red	Crimp
TE Connectivity AMP Connectors 1-1971906-7	2	0.118 in	UL94 V-0	0.561 in	Tin	Square	All	Tin	Kinked Pin Solder	Board Cable/Wire	Through Hole	Latch Holder	250 V	Male Pin	-30 °C	105 °C	Header	Shrouded - 4 Wall	Brass	Glass Filled Nylon 6/6 Polyamide (PA66)	Natural	0.575 in	Board Guide	0.205 in	14	0 A	Varies by Wire Gauge	0.13 in
TE Connectivity AMP Connectors 2-1939983-3	2		UL94 V-0	0.528 in	Tin	Rectangular	All	Tin	Kinked Pin Solder	Board Cable/Wire	Through Hole	Latch Holder	250 V	Tab	-30 °C	105 °C	Header	Shrouded - 4 Wall	Brass	Glass Filled Nylon 6/6 Polyamide (PA66)	Blue		Board Guide Keying Slot	0.205 in	10	0 A	Varies by Wire Gauge	0.13 in
TE Connectivity AMP Connectors 1-1971906-2	2	0.118 in	UL94 V-0	0.561 in	Tin	Square	All	Tin	Kinked Pin Solder	Board Cable/Wire	Through Hole	Latch Holder	250 V	Male Pin	-30 °C	105 °C	Header	Shrouded - 4 Wall	Brass	Glass Filled Nylon 6/6 Polyamide (PA66)	Natural	0.575 in	Board Guide	0.205 in	4	0 A	Varies by Wire Gauge	0.13 in					General Purpose Industrial
TE Connectivity AMP Connectors 1827395-1																																Crimp		Socket	Tin	24 AWG	19.5 AWG
