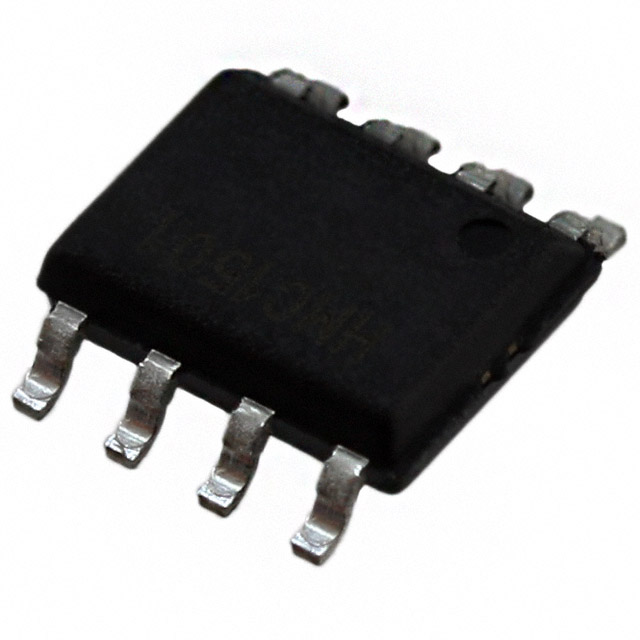

HMC1501-TR

Active

Honeywell Aerospace

SENSOR ANGLE 90DEG 8MM SMD

Search across all available documentation for this part.

Active

Honeywell Aerospace

SENSOR ANGLE 90DEG 8MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	HMC1501-TR

Actuator Type	External Magnet, Not Included
For Measuring	Linear, Rotary, Angle
Linear Range [Max] [x]	0.31 in
Linear Range [Max] [x]	8 mm
Linear Range [Min] [x]	0 mm
Linear Range [Min] [x]	0 in
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output	Wheatstone Bridge
Package / Case	8-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Resistance	6.5 kOhms
Rotation Angle - Electrical, Mechanical	90 °
Supplier Device Package	8-SOIC
Technology	Magnetoresistive
Termination Style	Gull Wing
Voltage - Supply [Max]	25 V
Voltage - Supply [Min]	1 V

SENSOR ANGLE 90DEG 8MM SMD

Part	For Measuring	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Technology	Linear Range [Min] [x]	Linear Range [Max] [x]	Linear Range [Min] [x]	Linear Range [Max] [x]	Termination Style	Output	Resistance	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Rotation Angle - Electrical, Mechanical
Honeywell Aerospace HMC1501-TR	Angle, Linear, Rotary	8-SOIC	3.9 mm	0.154 in	25 V	1 V	8-SOIC	Magnetoresistive	0 mm	0.31 in	0 in	8 mm	Gull Wing	Wheatstone Bridge	6.5 kOhms	External Magnet, Not Included	125 °C	-40 °C	Surface Mount	90 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Magnetoresistive Sensor Angle, Linear, Rotary External Magnet, Not Included Gull Wing
