896-050-541-807
ActiveEDAC Inc.

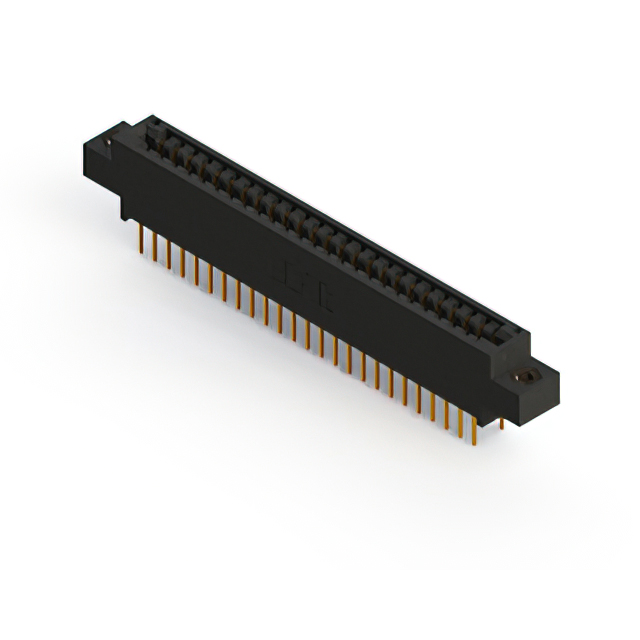

CARD EDGE CONNECTOR, 50 CONTACT(S), 2 ROW(S), FEMALE, 0.125 INCH PITCH, WIRE WRAP TERMINAL, M3, BLACK INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-050-541-807
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 50 CONTACT(S), 2 ROW(S), FEMALE, 0.125 INCH PITCH, WIRE WRAP TERMINAL, M3, BLACK INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-050-541-807 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 50 |
| Number of Positions/Bay/Row [custom] | 25 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
896-050 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Card Type | Color | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Contact Material | Gender | Number of Rows | Number of Positions | Contact Finish | Termination Rows | Pitch [x] | Pitch [x] | Read Out | Material - Insulation | Termination | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Cantilever | 125 °C | -40 °C | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 50 | Copper Alloy | Female | 1 | 50 | Gold | 1 | 0.125 in | 3.18 mm | Single | Polyphenylene Sulfide (PPS) | Wire Wrap | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Black | Cantilever | 125 °C | -40 °C | 4-40 Threaded Insert Top Mount Opening | 25 | Copper Alloy | Female | 2 | 50 | Gold | 2 | 0.125 in | 3.18 mm | Dual | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Extender | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Cantilever | 125 °C | -40 °C | 50 | Copper Alloy | Female | 1 | 50 | Gold | 1 | 0.125 in | 3.18 mm | Single | Polyphenylene Sulfide (PPS) | Wire Wrap | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Cantilever | 125 °C | -40 °C | Flush Mount M3 Threaded Insert Top Opening | 50 | Copper Alloy | Female | 1 | 50 | Gold | 1 | 0.125 in | 3.18 mm | Single | Polyphenylene Sulfide (PPS) | Solder | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Black | Cantilever | 125 °C | -40 °C | 25 | Copper Alloy | Female | 2 | 50 | Gold | 2 | 0.125 in | 3.18 mm | Dual | Polyphenylene Sulfide (PPS) | Solder | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Cantilever | 125 °C | -40 °C | 50 | Copper Alloy | Female | 1 | 50 | Gold | 1 | 0.125 in | 3.18 mm | Single | Polyphenylene Sulfide (PPS) | Solder | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Black | Cantilever | 125 °C | -40 °C | Flush Mount M3 Threaded Insert Top Opening | 25 | Copper Alloy | Female | 2 | 50 | Gold | 2 | 0.125 in | 3.18 mm | Dual | Polyphenylene Sulfide (PPS) | Solder | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Cantilever | 125 °C | -40 °C | 4-40 Threaded Insert Top Mount Opening | 50 | Copper Alloy | Female | 1 | 50 | Gold | 1 | 0.125 in | 3.18 mm | Single | Polyphenylene Sulfide (PPS) | Solder | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Black | Cantilever | 125 °C | -40 °C | M3 Threaded Insert Top Mount Opening | 25 | Copper Alloy | Female | 2 | 50 | Gold | 2 | 0.125 in | 3.18 mm | Dual | Polyphenylene Sulfide (PPS) | Wire Wrap | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | |||||
EDAC Inc. | 10 Áin | 0.25 Ám | Non Specified - Single Edge | Black | Cantilever | 125 °C | -40 °C | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 50 | Copper Alloy | Female | 1 | 50 | Gold | 1 | 0.125 in | 3.18 mm | Single | Polyphenylene Sulfide (PPS) | Solder | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
896-050 Series
50 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
