X-NUCLEO-NFC07A1
ActiveDYNAMIC NFC/RFID TAG IC EXPANSION BOARD BASED ON ST25DV64KC FOR STM32 NUCLEO
Deep-Dive with AI
Search across all available documentation for this part.
X-NUCLEO-NFC07A1
ActiveDYNAMIC NFC/RFID TAG IC EXPANSION BOARD BASED ON ST25DV64KC FOR STM32 NUCLEO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-NFC07A1 | X-NUCLEO-NFC07A1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Near Field Communication (NFC) | Near Field Communication (NFC) |
| Interconnect System | Arduino R3 Shield | Arduino R3 Shield |
| Platform | Nucleo | Nucleo |
| Suggested Programming Environment | STM32Cube | STM32Cube |
| Type | RF | RF |
| Utilized IC / Part | ST25DV64KC | ST25DV64KC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
X-NUCLEO-NFC07A1 Series
Dynamic NFC/RFID tag IC expansion board based on ST25DV64KC for STM32 Nucleo
| Part | Function | Type | Contents | Interconnect System | Platform | Suggested Programming Environment | Utilized IC / Part |
|---|---|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-NFC07A1 | |||||||
STMicroelectronics X-NUCLEO-NFC07A1 | |||||||
STMicroelectronics X-NUCLEO-NFC07A1 | Near Field Communication (NFC) | RF | Board(s) | Arduino R3 Shield | Nucleo | STM32Cube | ST25DV64KC |
Description
General part information
X-NUCLEO-NFC07A1 Series

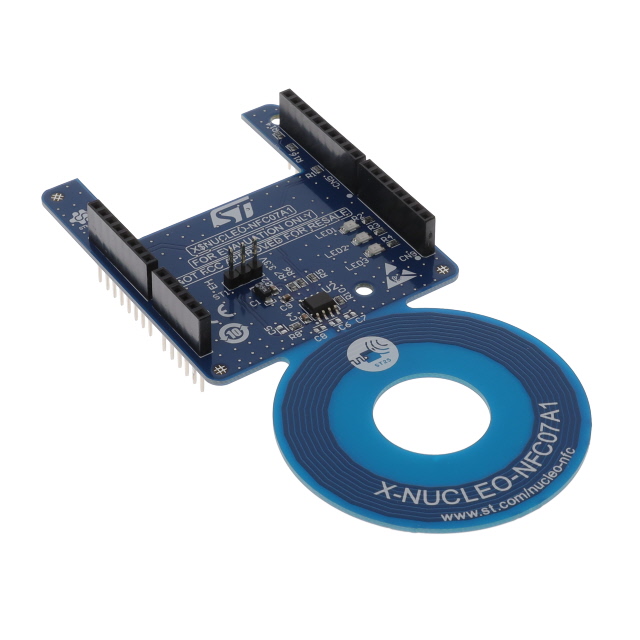

The X-NUCLEO-NFC07A1 dynamic NFC/RFID tag IC expansion board is based on the ST25DV64KC dynamic NFC/RFID tag IC with a 64-Kbit dual interface EEPROM and fast transfer mode feature. It can be powered through the STM32 Nucleo development board or directly through the received carrier electromagnetic field.
The X-NUCLEO-NFC07A1 expansion board is compatible with the Arduino UNO R3 connector pin assignment and can easily be plugged onto any STM32 Nucleo development board. You can stack other expansion boards to evaluate different devices that work together with the dynamic NFC tag.
The board also features a single-layer antenna with a diameter of 54 mm and copper etched on the PCB.
