SSF-LXH2103YYD/4

Active

Lumex Opto/Components Inc.

LED CBI 3MM BI-LVL YELLOW RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SSF-LXH2103YYD/4

Active

Lumex Opto/Components Inc.

LED CBI 3MM BI-LVL YELLOW RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH2103YYD/4	SSF-LXH2103 Series

Color	Yellow (x 2)	Yellow, Green Diffused, Green (x 2), Red, Red (x 1), Green (x 1), 2 Green Diffused, Yellow (x 2)
Configuration	2 High	2 High
Current	-	12 mA
Lens Size	3 mm	3 mm
Lens Size	T-1	T-1
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Tinted, Diffused	Tinted, Diffused
Millicandela Rating	30 mcd	25 - 40 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	60 °	60 °
Voltage Rating	2.1 V	2 - 5 V
Wavelength - Peak	585 nm	565 - 635 nm

SSF-LXH2103 Series

LED T-3MM DL 585NM YLW DIFF PCB

Part	Lens Style	Color	Configuration	Mounting Type	Lens Size	Lens Size	Millicandela Rating	Viewing Angle	Wavelength - Peak	Lens Type	Voltage Rating	Current
Lumex Opto/Components Inc. SSF-LXH2103LYGD/4	Round with Domed Top	Green Diffused, Yellow	2 High	Through Hole, Right Angle	3 mm	T-1
Lumex Opto/Components Inc. SSF-LXH2103LGGD/4	Round with Domed Top	Green (x 2)	2 High	Through Hole, Right Angle	3 mm	T-1	30 mcd	60 °	565 nm	Diffused, Tinted
Lumex Opto/Components Inc. SSF-LXH2103GGD/4	Round with Domed Top	Green (x 2)	2 High	Through Hole, Right Angle	3 mm	T-1	30 mcd	60 °	565 nm	Diffused, Tinted
Lumex Opto/Components Inc. SSF-LXH2103LIID/4	Round with Domed Top	Red	2 High	Through Hole, Right Angle	3 mm	T-1	40 mcd	60 °	635 nm	Diffused, Tinted	2 V
Lumex Opto/Components Inc. SSF-LXH2103LIGD/4	Round with Domed Top	Green (x 1), Red (x 1)	2 High	Through Hole, Right Angle	3 mm	T-1	25 mcd	60 °	565 nm, 635 nm	Diffused, Tinted	2 V, 2.2 V
Lumex Opto/Components Inc. SSF-LXH2103GGD-5V/4	Round with Domed Top	Green (x 2)	2 High	Through Hole, Right Angle	3 mm	T-1	30 mcd	60 °	565 nm	Diffused, Tinted	5 V	12 mA
Lumex Opto/Components Inc. SSF-LXH2103GGD/2	Round with Domed Top	2 Green Diffused	2 High	Through Hole, Right Angle	3 mm	T-1					2.1 V
Lumex Opto/Components Inc. SSF-LXH2103IID/4	Round with Domed Top	Red	2 High	Through Hole, Right Angle	3 mm	T-1	40 mcd	60 °	635 nm	Diffused, Tinted	2 V
Lumex Opto/Components Inc. SSF-LXH2103YYD/4	Round with Domed Top	Yellow (x 2)	2 High	Through Hole, Right Angle	3 mm	T-1	30 mcd	60 °	585 nm	Diffused, Tinted	2.1 V
Lumex Opto/Components Inc. SSF-LXH2103LYYD/4	Round with Domed Top	Yellow (x 2)	2 High	Through Hole, Right Angle	3 mm	T-1	30 mcd	60 °	585 nm	Diffused, Tinted	2.1 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.13
		10	$ 0.72
		500	$ 0.49
		1000	$ 0.40
		5000	$ 0.37
		10000	$ 0.36

Description

General part information

SSF-LXH2103 Series

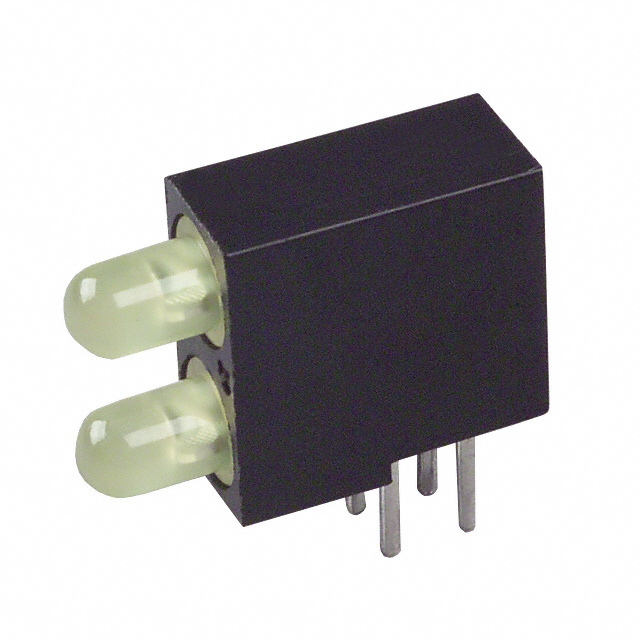

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Yellow (x 2) Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
