General part information

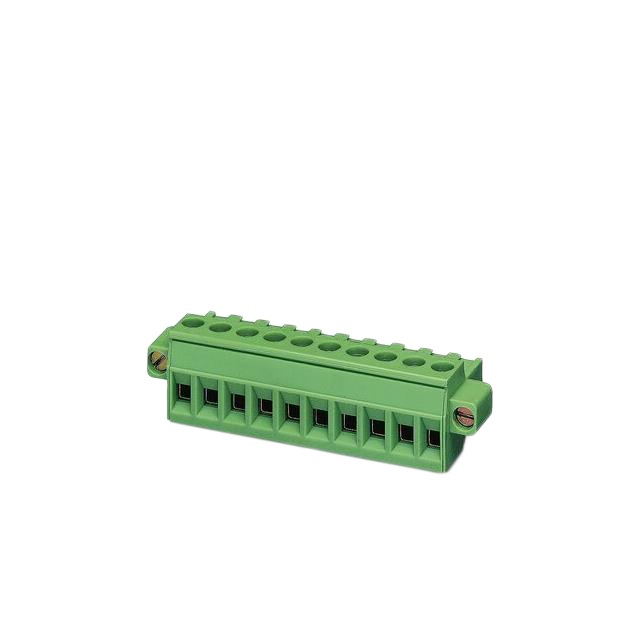

Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 24-12 AWG Screw
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1805385 | MSTBT Series |
|---|---|---|
| Color | Green | Green, Black |
| Contact Mating Finish | Tin | Tin |
| Current - IEC | 12 A | 12 A |
| Features | Mating Flange | Mating Flange |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Insulation Height | 0.591 in | 0.591 in |
| Insulation Height | 15 mm | 15 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Positions | 11 | 2 - 11 |
| Pitch [x] | 0.2 in | 0.2 in |
| Pitch [x] | 5.08 mm | 5.08 mm |
| Positions Per Level | 11 | 2 - 11 |
| Screw Size | M3 | M3 |
| Termination Style | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Torque - Screw [Max] | 0.6 Nm | 0.6 Nm |
| Torque - Screw [Max] | 5.3 Lb-In | 5.3 Lb-In |
| Torque - Screw [Min] | 4.4 Lb-In | 4.4 Lb-In |
| Torque - Screw [Min] | 0.5 Nm | 0.5 Nm |
| Type | Plug, Female Sockets | Plug, Female Sockets |
| Voltage - IEC | 630 V | 250 - 630 V |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG [Max] | 30 AWG | 30 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG | 12 AWG |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² | 0.2 mm² |
| Wire Strip Length | 7 mm | 7 mm |
Pluggable Terminal Blocks 4 Pos 5mm pitch Plug 24-12 AWG Screw
| Part | Current - IEC | Positions Per Level | Number of Positions | Material Flammability Rating | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Features | Number of Levels | Screw Size | Housing Material | Contact Mating Finish | Wire Strip Length | Pitch [x] | Pitch [x] | Termination Style | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Voltage - UL | Type | Torque - Screw [Max] | Torque - Screw [Max] | Torque - Screw [Min] | Torque - Screw [Min] | Mounting Type | Color | Insulation Height | Insulation Height | Voltage - IEC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1805385 | 12 A | 11 | 11 | UL94 V-0 | 30 AWG | 12 AWG | Mating Flange | 1 | M3 | Polyamide (PA), Nylon | Tin | 7 mm | 0.2 in | 5.08 mm | Screw - Rising Cage Clamp | 0.2 mm² | 2.5 mm² | 300 V | Plug, Female Sockets | 0.6 Nm | 5.3 Lb-In | 4.4 Lb-In | 0.5 Nm | Free Hanging (In-Line) | Green | 0.591 in | 15 mm | 630 V |
Phoenix Contact 1800934 | 12 A | 2 | 2 | 30 AWG | 12 AWG | 1 | M3 | Tin | 7 mm | 0.2 in | 5.08 mm | Screw - Rising Cage Clamp | 0.2 mm² | 2.5 mm² | Plug, Female Sockets | 0.6 Nm | 5.3 Lb-In | 4.4 Lb-In | 0.5 Nm | Free Hanging (In-Line) | Black | 0.591 in | 15 mm | 250 V |
