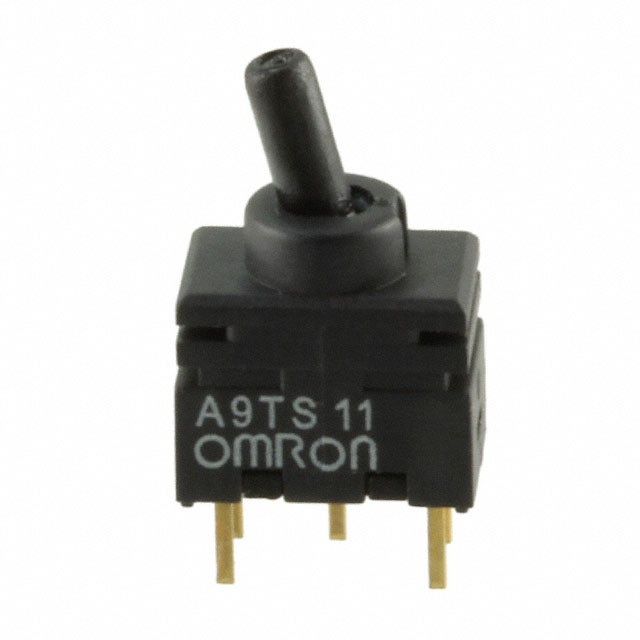

A9TS11-0011

Active

Omron Electronics Inc-EMC Div

SWITCH TOGGLE SPDT 100MA 28V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH TOGGLE SPDT 100MA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	A9TS11-0011

Actuator Length [x]	3.8 mm
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	100 mA
Electrical Life	50000 Cycles
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Ingress Protection	IP64 - Dust Tight, Water Resistant
Mounting Type	Through Hole
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Voltage Rating - AC	Illumination	Circuit	Current Rating (Amps)	Actuator Type	Electrical Life	Mounting Type	Actuator Length [x]	Termination Style	Voltage Rating - DC	Switch Function	Features	Ingress Protection	Bushing Thread	Operating Temperature [Min]	Operating Temperature [Max]
Omron Electronics Inc-EMC Div A9TS110013	28 V	Non-Illuminated	SPDT	100 mA	Standard Round	50000 Cycles	Right Angle Through Hole Vertical	3.8 mm	PC Pin	28 V	On-On	Sealed - Flux Protection	IP64 - Dust Tight Water Resistant	Unthreaded	-20 C	80 C
Omron Electronics Inc-EMC Div A9TS11-0011	28 V	Non-Illuminated	SPDT	100 mA	Standard Round	50000 Cycles	Through Hole	3.8 mm	PC Pin	28 V	On-On	Sealed - Flux Protection	IP64 - Dust Tight Water Resistant	Unthreaded	-20 C	80 C
Omron Electronics Inc-EMC Div A9TS11-0012	28 V	Non-Illuminated	SPDT	100 mA	Standard Round	50000 Cycles	Through Hole Right Angle	3.8 mm	PC Pin	28 V	On-On	Sealed - Flux Protection	IP64 - Dust Tight Water Resistant	Unthreaded	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Through Hole
