309CNQ150

Active

SMC Diode Solutions

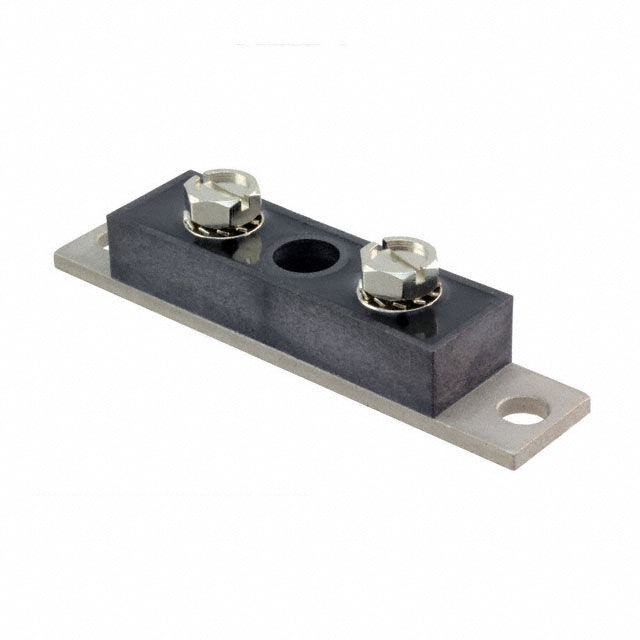

DIODE MOD SCHOTT 150V 150A PRM4

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE MOD SCHOTT 150V 150A PRM4

Technical Specifications

Parameters and characteristics for this part

Specification	309CNQ150

Current - Average Rectified (Io) (per Diode)	150 A
Current - Reverse Leakage @ Vr	3 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	PRM4
Speed	200 mA, 500 ns
Supplier Device Package	PRM4 (Non-Isolated)
Technology	Schottky
Voltage - Forward (Vf) (Max) @ If	1.03 V

Part	Current - Average Rectified (Io) (per Diode)	Technology	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Diode Configuration	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]
SMC Diode Solutions 309CNQ150	150 A	Schottky	200 mA 500 ns	175 ░C	-55 C	PRM4	3 mA	1.03 V	PRM4 (Non-Isolated)	1 Pair Common Cathode	Chassis Mount
SMC Diode Solutions 309CNQ135	150 A	Schottky	200 mA 500 ns	175 ░C	-55 C	PRM4	3 mA	1.03 V	PRM4 (Non-Isolated)	1 Pair Common Cathode	Chassis Mount	135 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	198	$ 50.70

General part information

Diode Array 1 Pair Common Cathode 150 V 150A Chassis Mount PRM4
