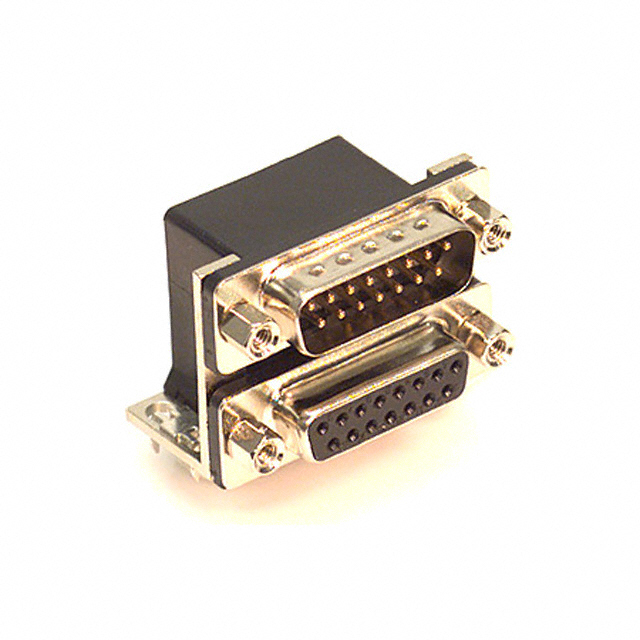

CONN D-SUB PLUG/RCPT 15P RA SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

189-015-412-571

Obsolete

MH Connectors

CONN D-SUB PLUG/RCPT 15P RA SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	189-015-412-571

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets, Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyester, Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	2
Shell Size, Connector Layout [custom]	2
Termination	Solder

189-015 Series

Part	Features	Dielectric Material	Backset Spacing	Backset Spacing	Connector Style	Contact Finish	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Color	Current Rating (Amps)	Contact Finish Thickness	Contact Form	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Contact Material	Shell Material, Finish	Number of Rows	Flange Feature	Mounting Type	Termination	Contact Type
MH Connectors 189-015-313R451	Grounding Indents Shielded	Polyamide (PA9T) Nylon 9T	8.08 mm	0.318 "	D-Sub - Stacked	Gold	UL94 V-0	105 ░C	-55 °C	Plug Male Pins Receptacle Female Sockets	Black	5 A	Flash	Stamped	2	2	15	Brass	Nickel Plated Steel	2	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	Solder	Signal
MH Connectors 189-015-513R491	Board Lock Shielded	Polyamide (PA9T) Nylon 9T	8.08 mm	0.318 "	D-Sub - Stacked	Gold	UL94 V-0	105 ░C	-55 °C	Receptacle Female Sockets	Black	5 A	Flash	Stamped	2	2	15	Brass	Nickel Plated Steel	2	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	Solder	Signal
MH Connectors 189-015-312-571	Board Lock Grounding Indents	Polyester Glass Filled	8.08 mm	0.318 "	D-Sub - Stacked	Gold	UL94 V-0	105 ░C	-55 °C	Plug Male Pins Receptacle Female Sockets	Black	5 A	Flash		2	2	15			2	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	Solder	Signal
MH Connectors 189-015-412-571	Board Lock Grounding Indents	Polyester Glass Filled	8.08 mm	0.318 "	D-Sub - Stacked	Gold	UL94 V-0	105 ░C	-55 °C	Plug Male Pins Receptacle Female Sockets	Black	5 A	Flash		2	2	15			2	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	Solder	Signal
MH Connectors 189-015-413R691	Board Lock Grounding Indents Shielded	Polyamide (PA9T) Nylon 9T	8.08 mm	0.318 "	D-Sub - Stacked	Gold	UL94 V-0	105 ░C	-55 °C	Plug Male Pins Receptacle Female Sockets	Black	5 A	Flash	Stamped	2	2	15	Brass	Nickel Plated Steel	2	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	Solder	Signal
MH Connectors 189-015-613R451	Grounding Indents Shielded	Polyamide (PA9T) Nylon 9T	8.08 mm	0.318 "	D-Sub - Stacked	Gold	UL94 V-0	105 ░C	-55 °C	Male Pins Plug	Black	5 A	Flash	Stamped	2	2	15	Brass	Nickel Plated Steel	2	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	Solder	Signal
MH Connectors 189-015-613R691	Board Lock Grounding Indents Shielded	Polyamide (PA9T) Nylon 9T	8.08 mm	0.318 "	D-Sub - Stacked	Gold	UL94 V-0	105 ░C	-55 °C	Male Pins Plug	Black	5 A	Flash	Stamped	2	2	15	Brass	Nickel Plated Steel	2	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	Solder	Signal
MH Connectors 189-015-413R451	Grounding Indents Shielded	Polyamide (PA9T) Nylon 9T	8.08 mm	0.318 "	D-Sub - Stacked	Gold	UL94 V-0	105 ░C	-55 °C	Plug Male Pins Receptacle Female Sockets	Black	5 A	Flash	Stamped	2	2	15		Nickel Plated Steel	2	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	Solder	Signal
MH Connectors 189-015-313R571	Board Lock Grounding Indents Shielded	Polyamide (PA9T) Nylon 9T	8.08 mm	0.318 "	D-Sub - Stacked	Gold	UL94 V-0	105 ░C	-55 °C	Plug Male Pins Receptacle Female Sockets	Black	5 A	Flash	Stamped	2	2	15	Brass	Nickel Plated Steel	2	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	Solder	Signal
MH Connectors 189-015-513R691	Board Lock Shielded	Polyamide (PA9T) Nylon 9T	8.08 mm	0.318 "	D-Sub - Stacked	Gold	UL94 V-0	105 ░C	-55 °C	Receptacle Female Sockets	Black	5 A	Flash	Stamped	2	2	15	Brass	Nickel Plated Steel	2	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	Solder	Signal
