CCF0.13TB100

Active

Techflex

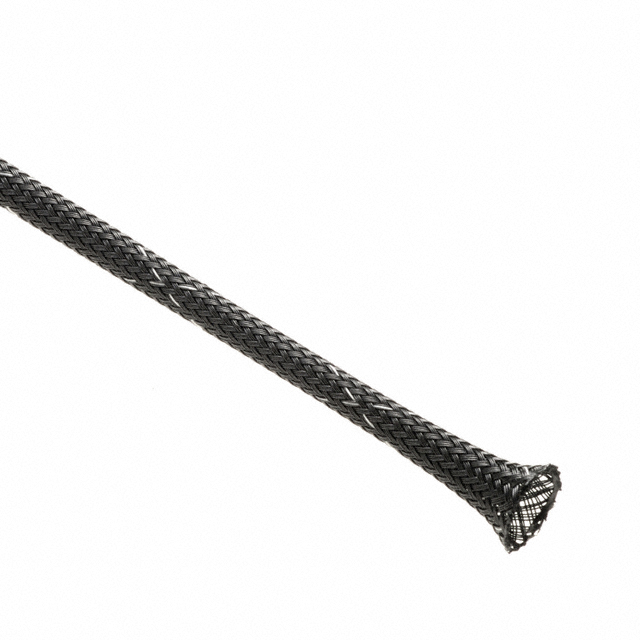

EXPAND SLEEV 1/8"X100' BLK/WHT

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEV 1/8"X100' BLK/WHT

Technical Specifications

Parameters and characteristics for this part

Specification	CCF0.13TB100

Abrasion Protection	Abrasion and Cut Resistant, Fray Resistant
Color	White, Black
Diameter - Inside, Expanded [diameter]	6.35 mm
Diameter - Inside, Expanded [diameter]	0.25 in
Diameter - Inside, Non-Expanded [diameter]	0.125 in
Diameter - Inside, Non-Expanded [diameter]	3.18 mm
Features	Clean Cut, Self Extinguishing
Heat Protection	Flame Retardant
Length	100 ft
Length	30.48 m
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL VW-1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness	0.024 in
Wall Thickness	0.61 mm

EXPAND SLEEV 1/8"X100' BLK/WHT

Part	Material Flammability Rating	Heat Protection	Abrasion Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Wall Thickness	Wall Thickness	Type	Length	Length	Features	Type Attributes	Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]
Techflex CCF0.13TB100	UL VW-1	Flame Retardant	Abrasion and Cut Resistant, Fray Resistant	6.35 mm	0.25 in	0.024 in	0.61 mm	Sleeve	100 ft	30.48 m	Clean Cut, Self Extinguishing	Expandable	Polyethylene Terephthalate (PET), Halogen Free	125 °C	-70 °C	Black, White	0.125 in	3.18 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sleeve X 100' (30.48m) Black, White
