7-119791-0
ActiveTE Connectivity AMP Connectors

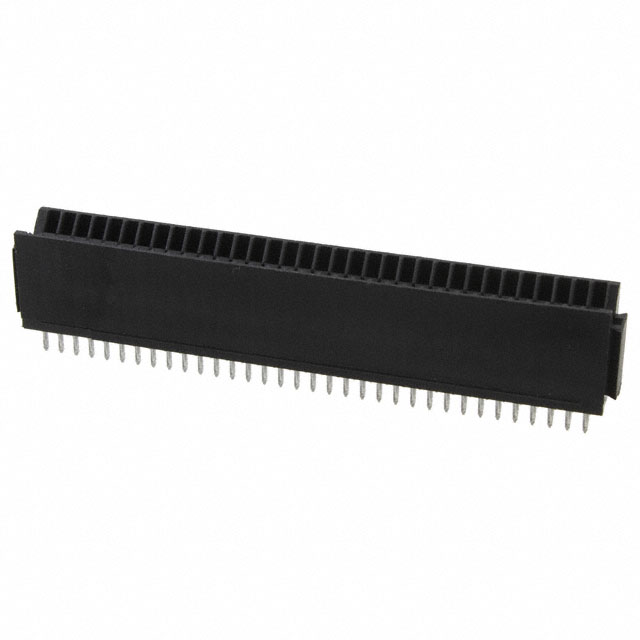

CONN EDGE DUAL FMALE 68POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7-119791-0
ActiveTE Connectivity AMP Connectors
CONN EDGE DUAL FMALE 68POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7-119791-0 | 119791 Series |
|---|---|---|
| Card Thickness [Max] | 0.071 in | 0.071 in |
| Card Thickness [Max] | 1.8 mm | 1.8 mm |
| Card Thickness [Min] | 0.054 " | 0.054 " |
| Card Thickness [Min] | 1.37 mm | 1.37 mm |
| Card Type | Non Specified - Dual Edge | Non Specified - Dual Edge |
| Color | Black | Black |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Type | - | Cantilever |
| Gender | Female | Female |
| Material - Insulation | Polyester, Glass Filled | Polyester, Glass Filled |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 68 | 60 - 68 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Read Out | Dual | Dual |
| Termination | Press-Fit | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
119791 Series
CONN EDGE DUAL FMALE 68POS 0.100
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Mounting Type | Material - Insulation | Number of Positions | Termination | Number of Rows | Color | Pitch [x] | Pitch [x] | Contact Material | Contact Finish | Gender | Card Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 7-119791-0 | 0.054 " | 1.37 mm | 0.071 in | 1.8 mm | Dual | Through Hole | Polyester, Glass Filled | 68 | Press-Fit | 2 | Black | 2.54 mm | 0.1 in | Phosphor Bronze | Gold | Female | Non Specified - Dual Edge | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors 1-119791-6 | 0.054 " | 1.37 mm | 0.071 in | 1.8 mm | Dual | Through Hole | Polyester, Glass Filled | 60 | Press-Fit | 2 | Black | 2.54 mm | 0.1 in | Phosphor Bronze | Gold | Female | Non Specified - Dual Edge | 0.76 Ám | 30 Áin | Cantilever |
Description
General part information
119791 Series
68 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
