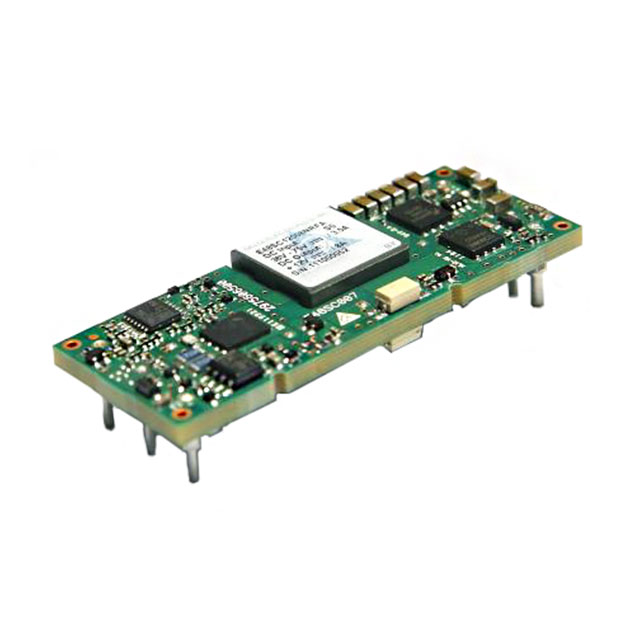

E48SC12010NRFA

Active

Delta Electronics

DC DC CONVERTER 12V 120W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

E48SC12010NRFA

Active

Delta Electronics

DC DC CONVERTER 12V 120W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	E48SC12010NRFA

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	10 A
Efficiency	91.7 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module, 1/8 Brick
Power (Watts)	120 W
Size / Dimension [x]	58.4 mm
Size / Dimension [x]	2.3 in
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	8.4 mm
Size / Dimension [z]	0.33 in
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

E48SC Series

Part	Mounting Type	Voltage - Isolation	Type	Applications	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output 1	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Features	Current - Output (Max) [Max]	Efficiency	Package / Case	Supplier Device Package	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Standard Number
Delta Electronics E48SC12025NRFH	Through Hole	1.5 kV	Isolated Module Digital	ITE (Commercial)	36 V	22.9 mm	58.4 mm	12.7 mm	0.5 in	2.3 in	0.9 "	75 V	1	12 V	300 W	85 °C	-40 °C	Active Low Enable	OCP OTP OVP Remote On/Off UVLO	25 A	95 %
Delta Electronics E48SC12010NRFA	Through Hole	2250 VDC	Isolated Module	ITE (Commercial)	36 V	22.9 mm	58.4 mm	8.4 mm	0.33 in	2.3 in	0.9 "	75 V	1	12 V	120 W	85 °C	-40 °C	Active Low Enable	OCP OTP OVP Remote On/Off UVLO	10 A	91.7 %	1/8 Brick 8-DIP Module
Delta Electronics E48SC32009NRAH	Through Hole	2250 VDC	Isolated Module	ITE (Commercial)	36 V	22.8 mm	58.4 mm	12.7 mm	0.5 in	2.3 in	0.9 "	72 V	1	32 V	301 W	85 °C	-40 °C		OCP OTP OVP Remote On/Off UVLO	9.4 A	95 %	Eighth Brick	Eighth Brick
Delta Electronics E48SC12005NNFA	Through Hole	2250 VDC	Isolated Module	ITE (Commercial)	36 V	22.9 mm	58.4 mm	8.4 mm	0.33 in	2.3 in	0.9 "	75 V	1	12 V	60 W	117 °C	-40 °C	Active Low Enable	OCP OTP OVP Remote On/Off UVLO	5 A	92 %	1/8 Brick 8-DIP Module
Delta Electronics E48SC50006NRAH	Through Hole		Isolated Module	ITE (Commercial)	36 V	22.8 mm	58.4 mm	12.7 mm	0.5 in	2.3 in	0.9 "	72 V	1	50 V	300 W	85 °C	-40 °C	Active Low Enable	Adjustable Output Heat Sink Remote On/Off Remote Sense	6 A	94.2 %	Eighth Brick	Eighth Brick
Delta Electronics E48SC32005NRAA	Through Hole	2250 VDC	Isolated Module	ITE (Commercial)	36 V		58.4 mm		0.41 "	2.3 in	0.9 "	72 V	1	32 V	160 W	85 °C	-40 °C		OCP OTP OVP Remote On/Off UVLO	5 A	95 %	Eighth Brick	Eighth Brick	22.8 mm	10.5 mm
Delta Electronics E48SC32009NRAA	Through Hole	2250 VDC	Isolated Module	ITE (Commercial)	36 V		58.4 mm		0.41 "	2.3 in	0.9 "	72 V	1	32 V	301 W	85 °C	-40 °C		OCP OTP OVP Remote On/Off UVLO	9.4 A	95 %	Eighth Brick	Eighth Brick	22.8 mm	10.5 mm
Delta Electronics E48SC50006NRDH	Through Hole	2250 VDC	Isolated Module	ITE (Commercial)	36 V	22.8 mm	58.4 mm	12.7 mm	0.5 in	2.3 in	0.9 "	72 V	1	50 V	300 W	85 °C	-40 °C	Active Low Enable	Adjustable Output PMBus™ Remote On/Off Remote Sense	6 A	94.7 %	Eighth Brick	Eighth Brick			CSA EN IEC UL	60950-1 62368-1
Delta Electronics E48SC3R315NRFA	Through Hole	1.5 kV	Isolated Module	ITE (Commercial)	36 V	22.8 mm	58.4 mm	9 mm	0.35 "	2.3 in	0.9 "	75 V	1	3.3 V	50 W	113 °C	-40 °C	Active Low Enable	OCP OTP OVP Remote On/Off UVLO	15 A	91 %	1/8 Brick 8-DIP Module
Delta Electronics E48SC05015NRFA	Through Hole	1.5 kV	Isolated Module	ITE (Commercial)	36 V	22.9 mm	58.4 mm	8.4 mm	0.33 in	2.3 in	0.9 "	75 V	1	5 V	83 W	113 °C	-40 °C	Active Low Enable	OCP OTP OVP Remote On/Off UVLO	15 A	91 %	1/8 Brick 8-DIP Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 31.71
		5	$ 31.47
		21	$ 31.22
		42	$ 29.27
		84	$ 26.83
		231	$ 26.34

Description

General part information

E48SC Series

Isolated Module DC DC Converter 1 Output 12V 10A 36V - 75V Input
