737-082-520-201

Active

EDAC Inc.

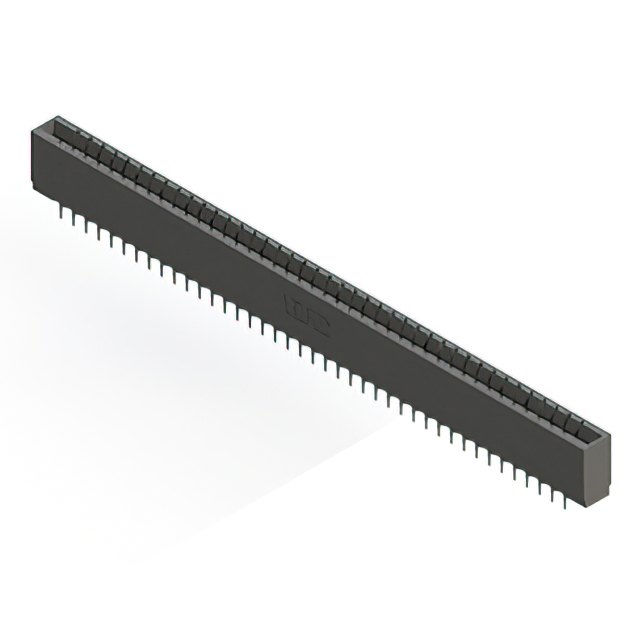

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 82 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

737-082-520-201

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 82 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	737-082-520-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	82
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

737-082 Series

Part	Number of Rows	Contact Material	Color	Pitch [x]	Pitch [x]	Contact Type	Termination Rows	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Read Out	Material - Insulation	Mounting Type	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Gender
EDAC Inc. 737-082-540-201	2	Copper Alloy	Black	0.156 in	3.96 mm	Cantilever	2	Press-Fit Wire Wrap	0.76 Ám	30 Áin	82	Dual	Polyester Thermoplastic	Through Hole	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	-40 °C	105 ░C	Female
EDAC Inc. 737-082-520-201	2	Copper Alloy	Black	0.156 in	3.96 mm	Cantilever	2	Press-Fit	0.76 Ám	30 Áin	82	Dual	Polyester Thermoplastic	Through Hole	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	-40 °C	105 ░C	Female
EDAC Inc. 737-082-522-206	2	Copper Alloy	Black	0.156 in	3.96 mm	Cantilever	2	Press-Fit	0.76 Ám	30 Áin	82	Dual	Polyester Thermoplastic	Through Hole	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	-40 °C	105 ░C	Female
EDAC Inc. 737-082-525-201	2	Copper Alloy	Black	0.156 in	3.96 mm	Cantilever	2	Press-Fit	0.76 Ám	30 Áin	82	Dual	Polyester Thermoplastic	Through Hole	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	-40 °C	105 ░C	Female
EDAC Inc. 737-082-545-206	2	Copper Alloy	Black	0.156 in	3.96 mm	Cantilever	2	Press-Fit Wire Wrap	0.76 Ám	30 Áin	82	Dual	Polyester Thermoplastic	Through Hole	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	-40 °C	105 ░C	Female
EDAC Inc. 737-082-541-201	2	Copper Alloy	Black	0.156 in	3.96 mm	Cantilever	2	Press-Fit Wire Wrap	0.76 Ám	30 Áin	82	Dual	Polyester Thermoplastic	Through Hole	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	-40 °C	105 ░C	Female
EDAC Inc. 737-082-545-201	2	Copper Alloy	Black	0.156 in	3.96 mm	Cantilever	2	Press-Fit Wire Wrap	0.76 Ám	30 Áin	82	Dual	Polyester Thermoplastic	Through Hole	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	-40 °C	105 ░C	Female
EDAC Inc. 737-082-520-206	2	Copper Alloy	Black	0.156 in	3.96 mm	Cantilever	2	Press-Fit	0.76 Ám	30 Áin	82	Dual	Polyester Thermoplastic	Through Hole	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	-40 °C	105 ░C	Female
EDAC Inc. 737-082-560-206	2	Copper Alloy	Black	0.156 in	3.96 mm	Cantilever Make Before Break	2	Press-Fit	0.76 Ám	30 Áin	82	Dual	Polyester Thermoplastic	Through Hole	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	-40 °C	105 ░C	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 11.42
Newark	Each	25	$ 11.76
		50	$ 11.16
		100	$ 10.56
		250	$ 9.95

Description

General part information

737-082 Series

82 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
