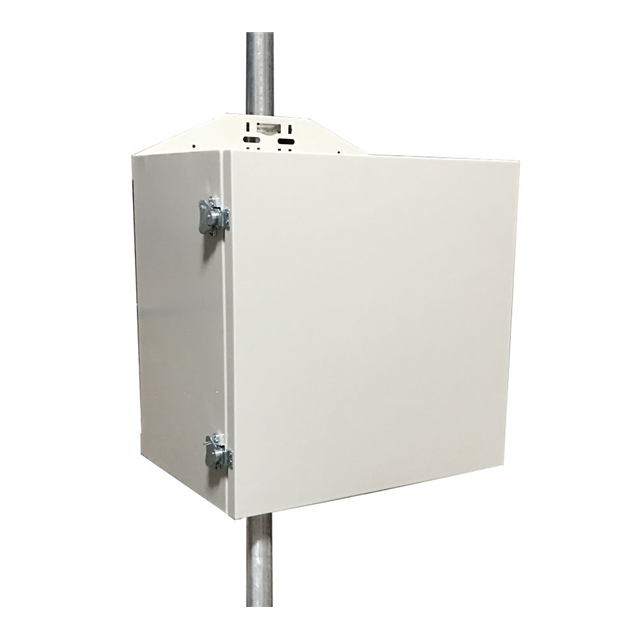

UPSTL12/48-200-600

Active

Tycon Systems Inc.

UPSPRO 12/24/48V 200AH 2400WH OU

Search across all available documentation for this part.

Active

Tycon Systems Inc.

UPSPRO 12/24/48V 200AH 2400WH OU

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UPSTL12/48-200-600	UPSTL12 Series

Applications	Industrial Control, General Purpose	Industrial Control, General Purpose
Approval Agency	UL, CE	UL, CE
Form	Chassis Mount	Chassis Mount
Height [z]	17.543 in	17.543 in
Height [z]	445.6 mm	445.6 mm
Power - Rated	600 W	600 W
Size / Dimension [x]	24.114 in	24.114 in
Size / Dimension [x]	612.5 mm	612.5 mm
Size / Dimension [y]	612.5 mm	612.5 mm
Size / Dimension [y]	24.114 in	24.114 in
Type	Standby (No Regulation)	Standby (No Regulation)
Voltage - Input	120 VAC, 240 VAC	120 - 240 VAC
Voltage - Output	12 V, 48 V, 24 V	12 - 48 V

UPSPRO 600W 1200VA, 12/24VDC 20A

Part	Voltage - Input	Form	Type	Applications	Power - Rated	Height [z]	Height [z]	Voltage - Output	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
Tycon Systems Inc. UPSTL12/24-100-600	120 VAC, 240 VAC	Chassis Mount	Standby (No Regulation)	General Purpose, Industrial Control	600 W	17.543 in	445.6 mm	12 V, 24 V	CE, UL	612.5 mm	24.114 in	24.114 in	612.5 mm
Tycon Systems Inc. UPSTL12/48-200-600	120 VAC, 240 VAC	Chassis Mount	Standby (No Regulation)	General Purpose, Industrial Control	600 W	17.543 in	445.6 mm	12 V, 24 V, 48 V	CE, UL	612.5 mm	24.114 in	24.114 in	612.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2199.95

General part information

UPSPRO 12/24/48V 200AH 2400WH OU
