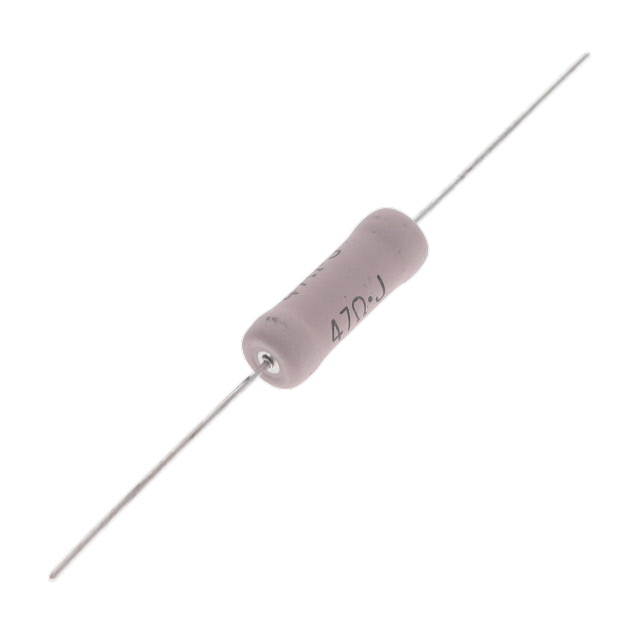

MOS5C470J

Active

KOA Speer Electronics, Inc.

RES 47 OHM 5% 5W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MOS5C470J

Active

KOA Speer Electronics, Inc.

RES 47 OHM 5% 5W AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.81
		10	$ 0.66
		500	$ 0.35
		1000	$ 0.29
		5000	$ 0.27
		10000	$ 0.27

Description

General part information

MOS5C Series

47 Ohms ±5% 5W Through Hole Resistor Axial Flame Retardant Coating, Safety Metal Oxide Film

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MOS5C470J	MOS5C Series

Composition	Metal Oxide Film	Metal Oxide Film
Features	Safety, Flame Retardant Coating	Safety, Flame Retardant Coating
Number of Terminations	2	2
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial	Axial
Power (Watts)	5 W	5 W
Resistance	47 Ohms	20 - 10000 Ohms
Size / Dimension [diameter]	0.354 in	0.354 in
Size / Dimension [diameter]	9 mm	9 mm
Size / Dimension [z]	0.965 in	0.965 in
Size / Dimension [z]	24.5 mm	24.5 mm
Supplier Device Package	Axial	Axial
Temperature Coefficient	300 ppm/°C	300 ppm/°C
Tolerance	5 %	2 - 5 %

MOS5C Series

RES 1K OHM 5% 5W AXIAL

Part	Tolerance	Temperature Coefficient	Power (Watts)	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Supplier Device Package	Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Number of Terminations	Composition	Features
KOA Speer Electronics, Inc. MOS5C102J	5 %	300 ppm/°C	5 W	0.354 in	9 mm	0.965 in	24.5 mm	Axial	1000 Ohms	-55 °C	200 °C	Axial	2	Metal Oxide Film	Flame Retardant Coating, Safety
KOA Speer Electronics, Inc. MOS5C200J	5 %	300 ppm/°C	5 W	0.354 in	9 mm	0.965 in	24.5 mm	Axial	20 Ohms	-55 °C	200 °C	Axial	2	Metal Oxide Film	Flame Retardant Coating, Safety
KOA Speer Electronics, Inc. MOS5C510J	5 %	300 ppm/°C	5 W	0.354 in	9 mm	0.965 in	24.5 mm	Axial	51 Ohms	-55 °C	200 °C	Axial	2	Metal Oxide Film	Flame Retardant Coating, Safety
KOA Speer Electronics, Inc. MOS5C470J	5 %	300 ppm/°C	5 W	0.354 in	9 mm	0.965 in	24.5 mm	Axial	47 Ohms	-55 °C	200 °C	Axial	2	Metal Oxide Film	Flame Retardant Coating, Safety
KOA Speer Electronics, Inc. MOS5C101J	5 %	300 ppm/°C	5 W	0.354 in	9 mm	0.965 in	24.5 mm	Axial	100 Ohms	-55 °C	200 °C	Axial	2	Metal Oxide Film	Flame Retardant Coating, Safety
KOA Speer Electronics, Inc. MOS5C750J	5 %	300 ppm/°C	5 W	0.354 in	9 mm	0.965 in	24.5 mm	Axial	75 Ohms	-55 °C	200 °C	Axial	2	Metal Oxide Film	Flame Retardant Coating, Safety
KOA Speer Electronics, Inc. MOS5C330J	5 %	300 ppm/°C	5 W	0.354 in	9 mm	0.965 in	24.5 mm	Axial	33 Ohms	-55 °C	200 °C	Axial	2	Metal Oxide Film	Flame Retardant Coating, Safety
KOA Speer Electronics, Inc. MOS5C103J	5 %	300 ppm/°C	5 W	0.354 in	9 mm	0.965 in	24.5 mm	Axial	10000 Ohms	-55 °C	200 °C	Axial	2	Metal Oxide Film	Flame Retardant Coating, Safety
KOA Speer Electronics, Inc. MOS5C103G	2 %	300 ppm/°C	5 W	0.354 in	9 mm	0.965 in	24.5 mm	Axial	10000 Ohms	-55 °C	200 °C	Axial	2	Metal Oxide Film	Flame Retardant Coating, Safety
KOA Speer Electronics, Inc. MOS5C104J	5 %	300 ppm/°C	5 W	0.354 in	9 mm	0.965 in	24.5 mm	Axial	100 kOhms	-55 °C	200 °C	Axial	2	Metal Oxide Film	Flame Retardant Coating, Safety
