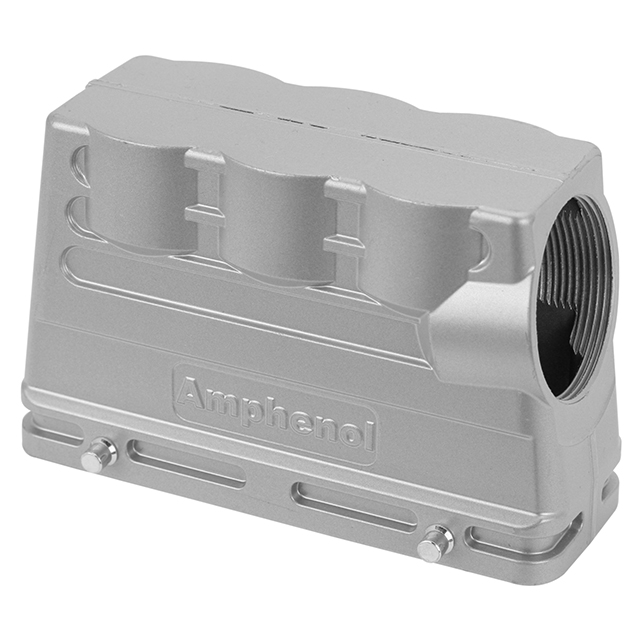

C146 11G024 501 8

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE24 PG29

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN HOOD SIDE ENTRY SZE24 PG29

Technical Specifications

Parameters and characteristics for this part

Specification	C146 11G024 501 8

Connector Type	Hood
Housing Color	Gray
Housing Finish	EMC Coating
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E24
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Side Entry
Thread Size	PG29

Part	Ingress Protection	Style	Housing Color	Thread Size	Housing Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Lock Location	Size	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Finish
Amphenol Tuchel Industrial C146 11G024 501 8	IP65 - Dust Tight Water Resistant	Side Entry	Gray	PG29	Aluminum Die Cast	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Locking Clip (2) on Base Bottom	E24	125 °C	-40 °C	Hood	EMC Coating
Amphenol Tuchel Industrial C146 11G024 601 8	IP65 - Dust Tight Water Resistant	Top Entry	Gray	PG29	Aluminum Die Cast	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Locking Clip (2) on Base Bottom	E24	125 °C	-40 °C	Hood	EMC Coating

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 21.84

General part information

Hood Connector Side Entry PG29 E24 IP65 - Dust Tight, Water Resistant

Technical documentation and resources

No documents available
