Q-2I04T0005002M

Active

Amphenol Custom Cable

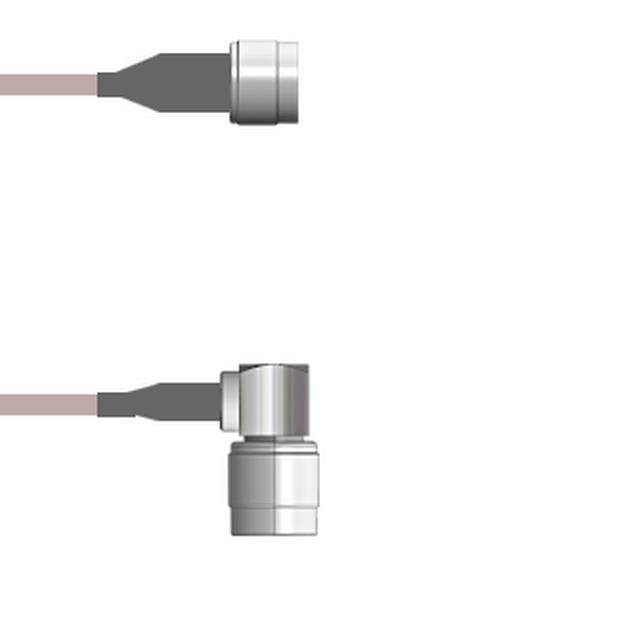

CBL ASSY NTYPE-TNC PLUG-PLG 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2I04T0005002M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC PLUG-PLG 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2I04T0005002M

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms

Q-2I04T0 Series

Part	2nd Connector Mounting Type	Cable Type	2nd Connector	Length	Length	Length	Overall Impedance	Frequency - Max [Max]	Features	2nd Contact Gender	1st Contact Gender	1st Connector Mounting Type	Color	Length [x]	Length [x]
Amphenol Custom Cable Q-2I04T0003108i	Free Hanging (In-Line)	RG-174	TNC Plug Right Angle	2.7 m	9 ft	108 in	50 Ohms	11 GHz	Shielded	Male	Male	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2I04T0003003M	Free Hanging (In-Line)	RG-174	TNC Plug Right Angle	3 m	9.8 '	118.1 in	50 Ohms	11 GHz	Shielded	Male	Male	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2I04T0003.25M	Free Hanging (In-Line)	RG-174	TNC Plug Right Angle				50 Ohms	11 GHz	Shielded	Male	Male	Free Hanging (In-Line)	Black	9.843 "	250 mm
Amphenol Custom Cable Q-2I04T0005.75M	Free Hanging (In-Line)	RG-316	TNC Plug Right Angle	750 mm		29.53 "	50 Ohms	11 GHz	Shielded	Male	Male	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-2I04T00030.5M	Free Hanging (In-Line)	RG-174	TNC Plug Right Angle	50 cm		19.69 "	50 Ohms	11 GHz	Shielded	Male	Male	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2I04T0005036i	Free Hanging (In-Line)	RG-316	TNC Plug Right Angle	91.44 cm		36 in	50 Ohms	11 GHz	Shielded	Male	Male	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-2I04T00032.5M	Free Hanging (In-Line)	RG-174	TNC Plug Right Angle	2.5 m	8.2 '	98.4 in	50 Ohms	11 GHz	Shielded	Male	Male	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2I04T0005002M	Free Hanging (In-Line)	RG-316	TNC Plug Right Angle	2 m	6.6 ft	78.7 in	50 Ohms	11 GHz	Shielded	Male	Male	Free Hanging (In-Line)	Copper
Amphenol Custom Cable Q-2I04T0003003i	Free Hanging (In-Line)	RG-174	TNC Plug Right Angle	76.2 mm		3 in	50 Ohms	11 GHz	Shielded	Male	Male	Free Hanging (In-Line)	Black
Amphenol Custom Cable Q-2I04T0003024i	Free Hanging (In-Line)	RG-174	TNC Plug Right Angle	609.6 mm		24 "	50 Ohms	11 GHz	Shielded	Male	Male	Free Hanging (In-Line)	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 79.83
		25	$ 74.34
		50	$ 68.85
		100	$ 64.15
		250	$ 60.23

Description

General part information

Q-2I04T0 Series

Cable Assembly Coaxial N-Type to TNC RG-316 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
