1MM-R-D25-VS-00-H-TBP

Active

TE Connectivity Raychem Cable Protection

SCL 1.0 RCPT DR VT 050 SMT G3 TB

Deep-Dive with AI

Search across all available documentation for this part.

1MM-R-D25-VS-00-H-TBP

Active

TE Connectivity Raychem Cable Protection

SCL 1.0 RCPT DR VT 050 SMT G3 TB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1MM-R-D25-VS-00-H-TBP

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.13 in
Insulation Height	3.3 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Termination	Solder
Voltage Rating	30 VAC

AMPMODU Small Centerline Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Type	Insulation Color	Termination	Insulation Material	Contact Material	Fastening Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Number of Positions Loaded	Contact Finish - Post	Mounting Type	Contact Finish - Mating	Material Flammability Rating	Connector Type	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Number of Rows	Features
TE Connectivity Raychem Cable Protection 1MM-R-D27-VS-00-H-TRP
TE Connectivity Raychem Cable Protection 1MM-R-D48-VS-00-H-TBP	30 Áin	0.76 Ám	-55 °C	125 °C	96	Female Socket	Black	Solder	Thermoplastic	Copper Alloy	Push-Pull	0.039 in	1 mm	30 VAC	All	Tin	Surface Mount	Gold	UL94 V-0	Receptacle	0.13 in	3.3 mm	0.039 "	1 mm	150 Áin	3.81 Ám	Square	2	Pick and Place
TE Connectivity Raychem Cable Protection 1MM-R-D26-VS-00-F-TRP
TE Connectivity Raychem Cable Protection 1MM-R-D13-VS-00-H-TRP
TE Connectivity Raychem Cable Protection 1MM-R-D50-VS-00-H-TRP
TE Connectivity Raychem Cable Protection 1MM-R-D23-VS-00-F-TBP
TE Connectivity Raychem Cable Protection 1MM-R-D25-VS-00-H-TBP	30 Áin	0.76 Ám	-55 °C	125 °C	50	Female Socket	Black	Solder	Thermoplastic	Copper Alloy	Push-Pull	0.039 in	1 mm	30 VAC	All	Tin	Surface Mount	Gold	UL94 V-0	Receptacle	0.13 in	3.3 mm	0.039 "	1 mm	150 Áin	3.81 Ám	Square	2	Pick and Place
TE Connectivity Raychem Cable Protection 1MM-R-D48-VS-00-F-TBP	5 µin	0.127 µm	-55 °C	125 °C	96	Female Socket	Black	Solder	Thermoplastic	Copper Alloy	Push-Pull	0.039 in	1 mm	30 VAC	All	Tin	Surface Mount	Gold	UL94 V-0	Receptacle	0.118 in	3 mm	0.039 "	1 mm	150 Áin	3.81 Ám	Square	2	Pick and Place
TE Connectivity Raychem Cable Protection 1MM-R-D11-VS-00-H-TRP
TE Connectivity Raychem Cable Protection 1MM-R-D29-VS-00-F-TRP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.27
		21	$ 7.48
		105	$ 6.68
		504	$ 5.98
		1008	$ 5.69

Description

General part information

AMPMODU Small Centerline Series

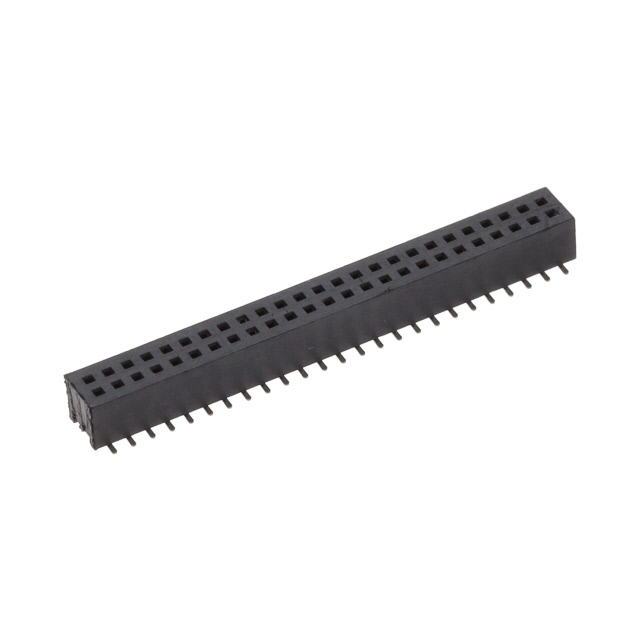

50 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
